Overview
The Corner 90 Drawers is a specialty product available in Mozaik's Frameless cabinet libraries. This pre-configured product is designed specifically for corner drawer applications and comes with predefined parameters that control its construction and appearance.:
Accessing Corner 90 Drawers
Location:

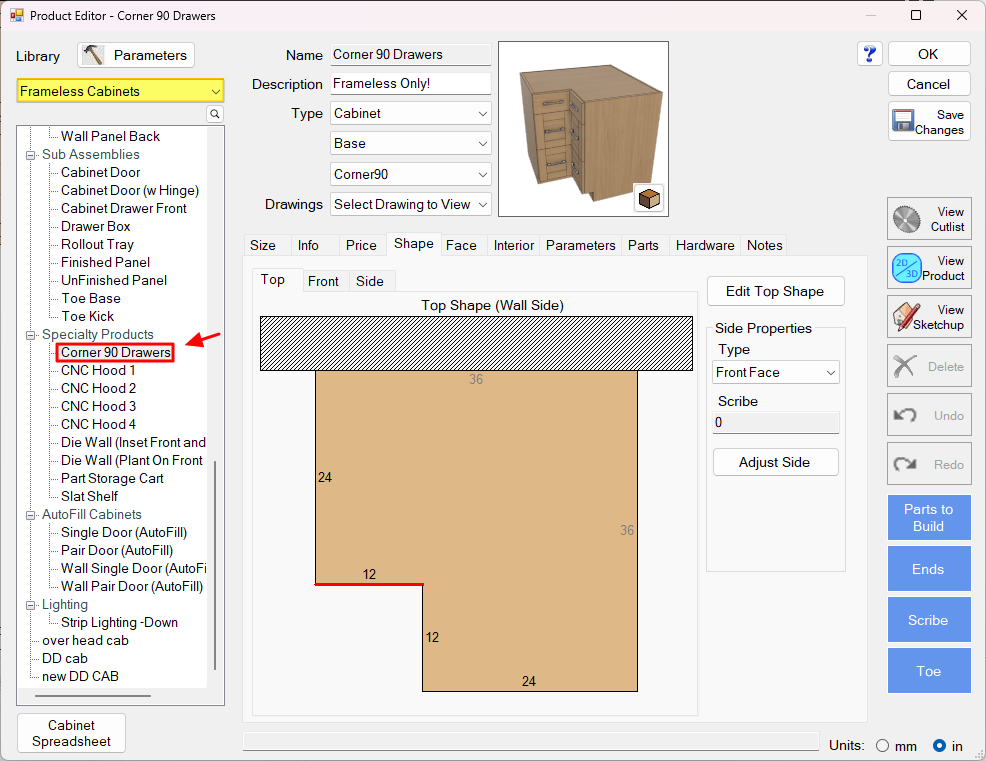

The Corner 90 Drawers product is found in the Frameless libraries under specialty products.
To add it to your design:
- Open your job in Mozaik
- Access the Product Library (typically in the Products tab or sidebar)
- Navigate to the Frameless library section
- Locate "Corner 90 Drawers" in the specialty products category
- Drag and drop the product into your room layout
Understanding the Product Structure
Pre-Configured Parameters
The Corner 90 Drawers product is built using a collection of predefined parameters that control:
- Cabinet dimensions and proportions
- Drawer configuration and spacing
- Hardware placement
- Construction details
Important: Because this product relies on interconnected parameters, there are limitations on editing individual components compared to standard products.
Editing Limitations
What This Means:
Unlike standard cabinet products where you can freely modify most aspects, the Corner 90 Drawers product has restricted editing capabilities to maintain its specialized corner functionality.
You may experience limitations when trying to:
- Change certain dimensions independently
- Modify specific construction details
- Adjust hardware positions outside predefined ranges
- Alter the relationship between corner components
Why these limitations exist: The parameters are designed to work together to create a functional corner drawer unit. Changing one parameter may affect others to maintain the product's structural integrity and proper operation.

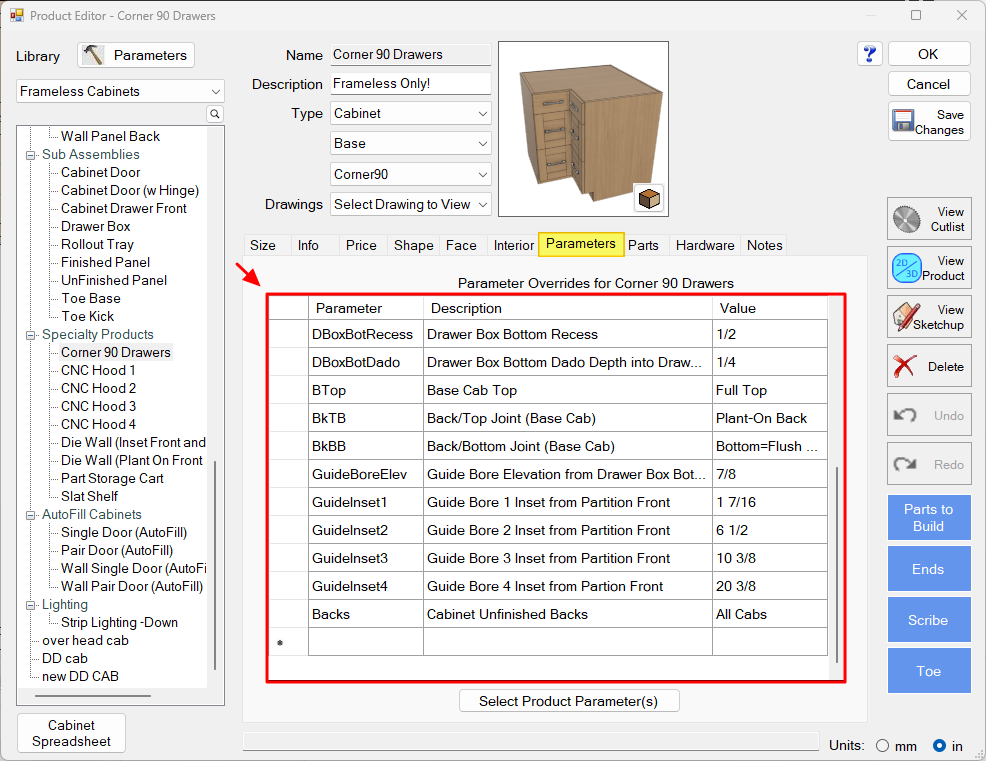

Viewing Product Parameters
Before using the Corner 90 Drawers in your design, it's recommended to review the parameters that define this product.:
To View Parameters:
- Open the Product Editor:
- Right-click on the Corner 90 Drawers product in your library or in your design
- Select "Edit Product" or "Product Editor"
- Access the Parameters Section:
- In the Product Editor, navigate to the Parameters tab or section
- Review the list of parameters that control the product
- Note Important Parameters:
- Document which parameters control key dimensions
- Identify which parameters can be adjusted vs. which are locked
- Understand the relationships between parameters
Working with Corner 90 Drawers
Best Practices:
Before Placing the Product:
- Review the available parameters to understand what can be customized
- Verify the product's default dimensions will work in your corner application
- Check that the drawer configuration meets your design requirements
When Modifying the Product:
- Make dimensional changes through the available editable parameters rather than trying to edit individual components
- Test changes in a sample job before applying to customer projects
- If a desired modification isn't possible, consider whether a different product or custom build is needed
For Complex Customization:
- If the Corner 90 Drawers doesn't meet your specific needs, you may need to build a custom corner solution using standard products
- Contact the Help Desk if you need guidance on alternative approaches
Common Questions
"Why can't I edit certain aspects of this product?"
The Corner 90 Drawers is a specialty product with interdependent parameters designed to maintain proper corner drawer functionality. Some editing is restricted to preserve the product's structural integrity.
"Can I change the drawer count or spacing?"
Check the Parameters section to see which drawer-related parameters are editable. Some spacing and configuration options may be adjustable within predefined ranges.
"What if the default configuration doesn't work for my design?"
If the Corner 90 Drawers doesn't meet your requirements, consider:
- Checking if adjusting available parameters can achieve your goal
- Using a different specialty product that better fits your needs
- Building a custom corner solution using standard cabinet products
- Contacting the Help Desk for alternative solutions
"How do I know which parameters I can change?"
In the Product Editor's Parameters section, editable parameters are typically accessible for modification, while locked parameters are grayed out or otherwise restricted. Review this section carefully before starting your design.
Tips for Success
- Familiarize yourself with the product before using it in customer jobs
- Document the editable parameters for quick reference
- Create test designs to understand the product's behavior and limitations
- Plan your corner layout around the product's capabilities
- Keep notes on what works and what doesn't for future reference
