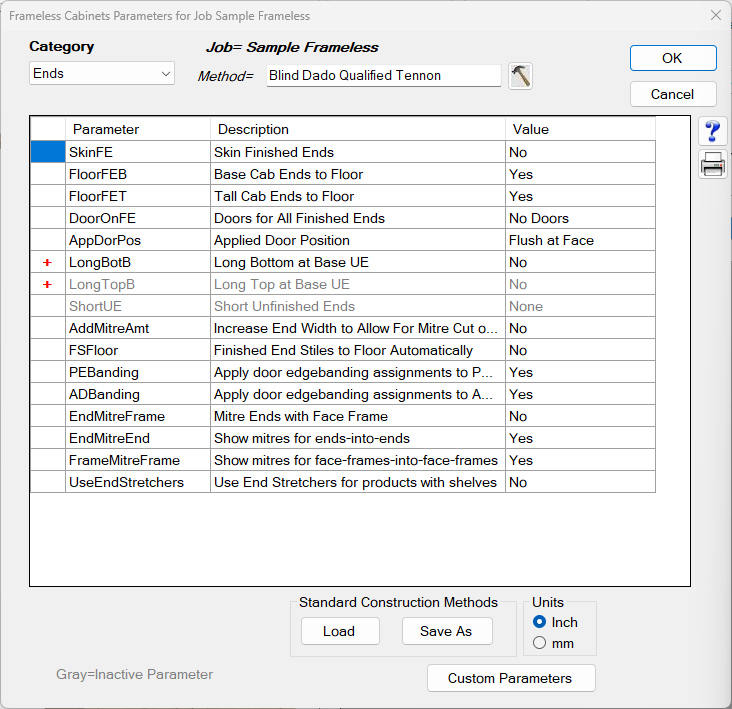

Understanding Ends Parameters in Mozaik

This article covers all Ends category parameters in Mozaik. These settings control how cabinet ends are constructed, finished, positioned, and edge banded. Changes to these parameters affect the entire job unless overridden at the individual cabinet level.

Parameters

DoorOnFE — Doors for All Finished Ends Controls how finished ends are treated across all cabinets in the job. End options can be overridden at the cabinet level in the Shape Tab drop-down menu.

  • No Doors — Standard finished ends are used. No door is added to the finished end.
  • Panelized Ends — An integral door is used on all finished ends. No unfinished end will be added.
  • Applied Doors — A door is applied to an unfinished end.

AppDorPos — Applied Door Position Sets the position of an applied door on the cabinet end.

  • Behind Frame — The applied door is tucked in behind the face frame stile.
  • Flush at Face — The applied door is brought out flush to the front of the face frame.
  • Note: If you mitre the face frame into the stile, use the Behind Frame option and set the AplDoorWA parameter to the thickness of your face frame.

SkinFE — Skin Finished Ends Controls whether a separate finished skin is applied to finished ends.

  • Yes — A separate skin is applied to the finished end. This results in one unfinished end panel and one finished skin per finished end. The finished skin uses the FinSkin material.
  • No — The finished end is exposed and is an integral part of the case. No separate skin is generated.

EndMitreFrame — Mitre Finished Ends with Frames Set to YES if you want finished ends to be mitred into face frame stiles. Applies to Face Frame construction.

AddMitreAmt — Increase End to Allow for Mitre on 45° Cabinets Set to YES to increase the end panel size of a 45° corner cabinet to allow the end to be mitred into the adjacent cabinet. The cabinet side width is determined in the Shape Tab.

  • Yes — End is increased by the end thickness to allow for the mitre cut.
  • No — End is cut to standard cabinet side width only.

FloorFEB — Base Cabinet Ends to Floor Controls whether base cabinet ends run all the way to the floor.

  • Yes — Base cabinet ends run to the floor. Select this if you do not use a separate toe kick or toe box.
  • No — Base cabinet ends stop at the toe area. Select this if you build a separate toe kick or toe box.

FloorFET — Tall Cabinet Ends to Floor Controls whether tall cabinet ends run all the way to the floor.

  • Yes — Tall cabinet ends run to the floor. Select this if you do not use a separate toe kick or toe box.
  • No — Tall cabinet ends stop at the toe area. Select this if you build a separate toe kick or toe box.

FSFloor — Finished End Stiles to Floor Automatically Set to YES if you want all finished end stiles to run to the floor automatically. Applies to Face Frame construction with finished ends.

ShortUE — Short Unfinished Ends Set to YES if your unfinished ends on framed cabinets stop flush with the bottom panel. This allows for a bottom skin to be applied on wall cabinets or a continuous toe on base cabinets.

LongTopB — Long Top at Base Unfinished End Controls whether the top panel sits on top of the unfinished ends on base cabinets. When set to YES, the top will sit on top of the unfinished ends.

LongTopW — Long Top at Wall Unfinished End Controls whether the top panel sits on top of the unfinished ends on wall cabinets. When set to YES, the top will sit on top of the unfinished ends.

LongBotB — Long Bottom at Base Unfinished End Controls whether the unfinished ends sit on top of the bottom panel on base cabinets. When set to YES, the unfinished ends sit on top of the bottom panel.

LongBotW — Long Bottom at Wall Unfinished End Controls whether the unfinished ends sit on top of the bottom panel on wall cabinets. When set to YES, the unfinished ends sit on top of the bottom panel.

ADBanding — Apply Door Edgebanding Assignments to Applied Doors Set to YES if you want the door edgebanding assignments (configured in Libraries > Edge Band Assignments) to be applied to applied doors.

PEBanding — Apply Door Edgebanding Assignments to Panelized Ends Set to YES if you want the door edgebanding assignments (configured in Libraries > Edge Band Assignments) to be applied to panelized ends.
