Understanding Door Parameters in Mozaik
This article covers all Door category parameters in Mozaik. These settings control how doors and drawer fronts are sized, positioned, and spaced relative to the cabinet frame. Adjusting these parameters affects the entire job unless overridden at the individual cabinet level.:

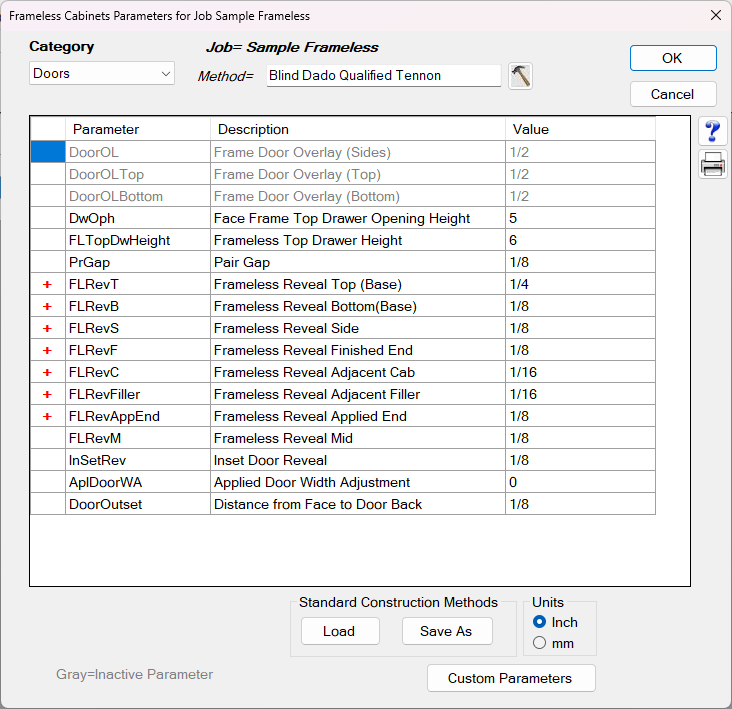

Parameters
DoorOL — Frame Door Overlay at Sides For Face Frame construction only. Controls how much the door/drawer fronts overlap the frame on each side. Enter the value for one side only.
- Note: The overlay can be adjusted per edge on the Face Tab in the Product Editor. Click on a door/drawer front and select the Adjust button to modify.
DoorOLTop — Frame Door Overlay at Top For Face Frame construction only. Controls how much the door/drawer fronts overlap the frame at the top.
- Note: The overlay can be adjusted per edge on the Face Tab in the Product Editor. Click on a door/drawer front and select the Adjust button to modify.
DoorOLBottom — Frame Door Overlay at Bottom For Face Frame construction only. Controls how much the door/drawer fronts overlap the frame at the bottom.
- Note: The overlay can be adjusted per edge on the Face Tab in the Product Editor. Click on a door/drawer front and select the Adjust button to modify.
DoorOutset — Distance from Face to Door Back Sets the distance between the face of the cabinet and the back of the door. Used to control how far the door sits out from the cabinet face.
DwOph — Top Drawer Opening Height For Face Frame construction. Determines the opening height between the Top Rail and the first added Mid Rail.
FLTopDwHeight — Frameless Top Drawer Height For Frameless construction only. Sets the height of the top drawer front.
PrGap — Pair Gap Sets the amount of space between a pair of doors. A pair of doors is a specific section type set in the Face Tab. Applies to all construction methods.
FLRevT — Base Cabinet Reveal at Top Sets the reveal (gap) at the top of a base cabinet between the cabinet box and the door/drawer front.
- Applies to: Frameless, 32mm, and Full Overlay construction methods
FLRevTW — Wall / Tall Cabinet Reveal at Top Sets the reveal at the top of wall and tall cabinets.
- Applies to: Frameless, 32mm, and Full Overlay construction methods
FLRevB — Base / Tall Cabinet Reveal at Bottom Sets the reveal at the bottom of base and tall cabinets.
- Applies to: Frameless, 32mm, and Full Overlay construction methods
FLRevBW — Wall Cabinet Reveal at Bottom Sets the reveal at the bottom of wall cabinets.
- Note: A negative value can be entered to extend the doors below the cabinet bottom.
- Applies to: Frameless, 32mm, and Full Overlay construction methods
FLRevS — Cabinet Reveal at Unfinished End Sets the reveal on the unfinished (wall-side) end of the cabinet.
- Applies to: Frameless, 32mm, and Full Overlay construction methods
FLRevF — Cabinet Reveal at Finished End Sets the reveal on the finished (exposed) end of the cabinet.
- Applies to: Frameless, 32mm, and Full Overlay construction methods
FLRevC — Cabinet Reveal When Adjacent to Another Cabinet Sets the reveal where two cabinets meet side by side. This value is per cabinet — the total visible gap between adjacent cabinets will be 2 x FLRevC.
- Applies to: Frameless, 32mm, and Full Overlay construction methods
FLRevFiller — Cabinet Reveal at Filler Sets the reveal between the cabinet and an adjacent filler piece.
- Applies to: Frameless, 32mm, and Full Overlay construction methods
FLRevAppEnd — Cabinet Reveal at Applied End Sets the reveal at an applied end panel on the cabinet.
- Applies to: Frameless, 32mm, and Full Overlay construction methods
FLRevM — Cabinet Reveal Mid Sets the reveal where doors and drawer fronts meet within the same cabinet (between sections).
- Applies to: Frameless, 32mm, and Full Overlay construction methods
InSetRev — Inset Door Reveal Sets the gap between the door/drawer front and the cabinet opening for inset-style cabinets.
- Applies to: Face Frame Inset and Frameless Inset construction methods
AplDoorWA — Applied Door Width Adjustment Adds or subtracts from the width of a door applied on the end of a cabinet at the Shape Tab.
- Note: This only applies to applied doors added at the Shape Tab. It does not apply to applied doors placed as a separate product on the Product Tab.
