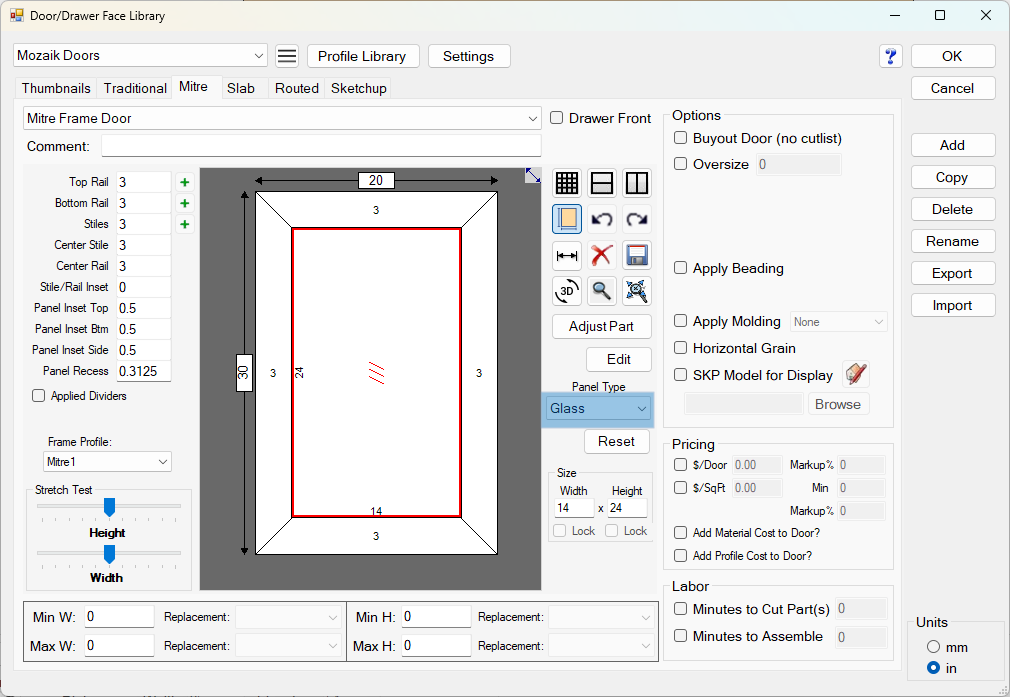

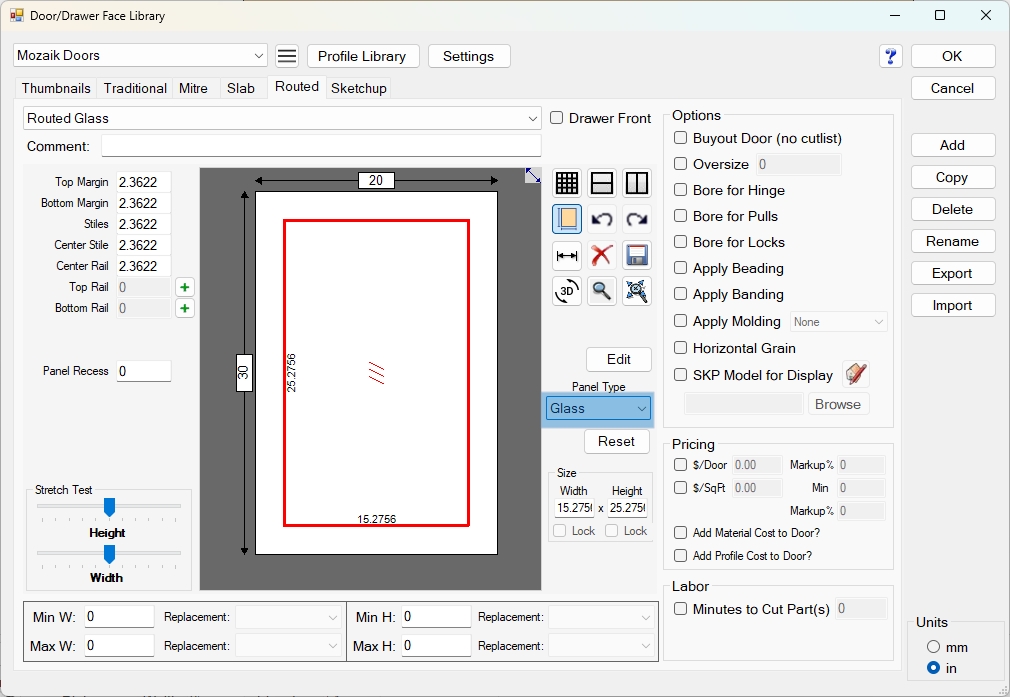

In order to add a glass door to your job, you will first need to make sure that you have a glass door in your door library. If you do not already have a glass door, or you want something different, you can change the panel for any Traditional, Mitre, or Routed Door:
You can then either make the selection for at a room level, or you can use an override if you only want the glass door for some of the cabinets. The override can be done at a cabinet level (from the info tab) or at the door level (from the face tab). Please see the video below and let me know if you have any further questions:

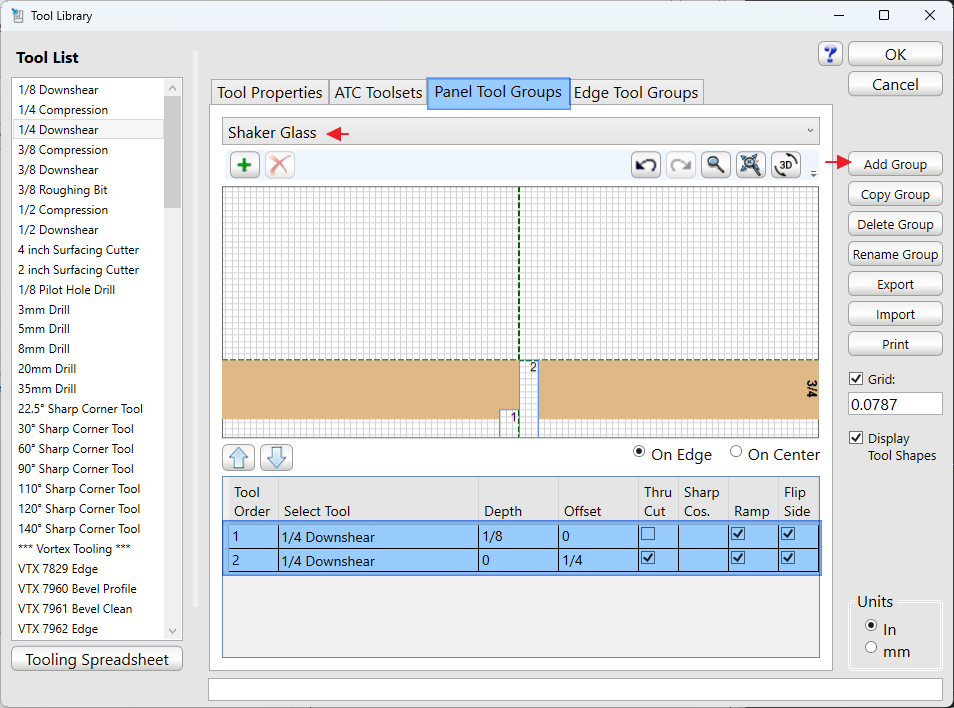

If you are also wanting a rabbit for the door, you will also need to make sure that your panel tooling is correct. Start by creating a Panel Tool Group using tools available in the toolset. For that, go to Optimizer Library CNC Tooling Panel Tool Groups
(See image below)
After creating the panel tool group, return to Mozaik and apply the tool group to the door settings.

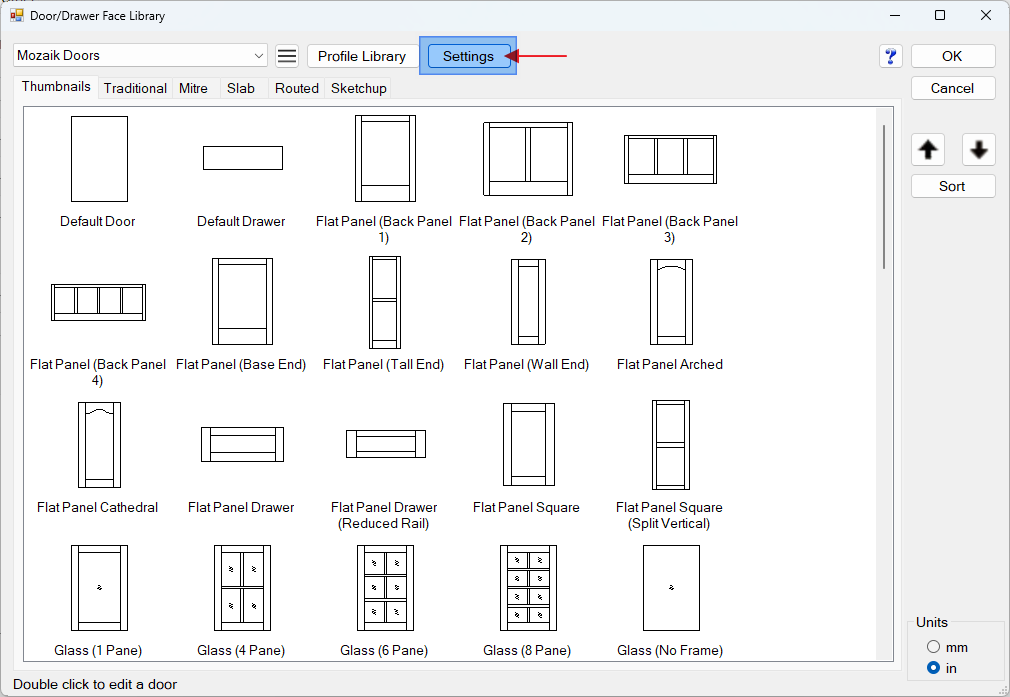

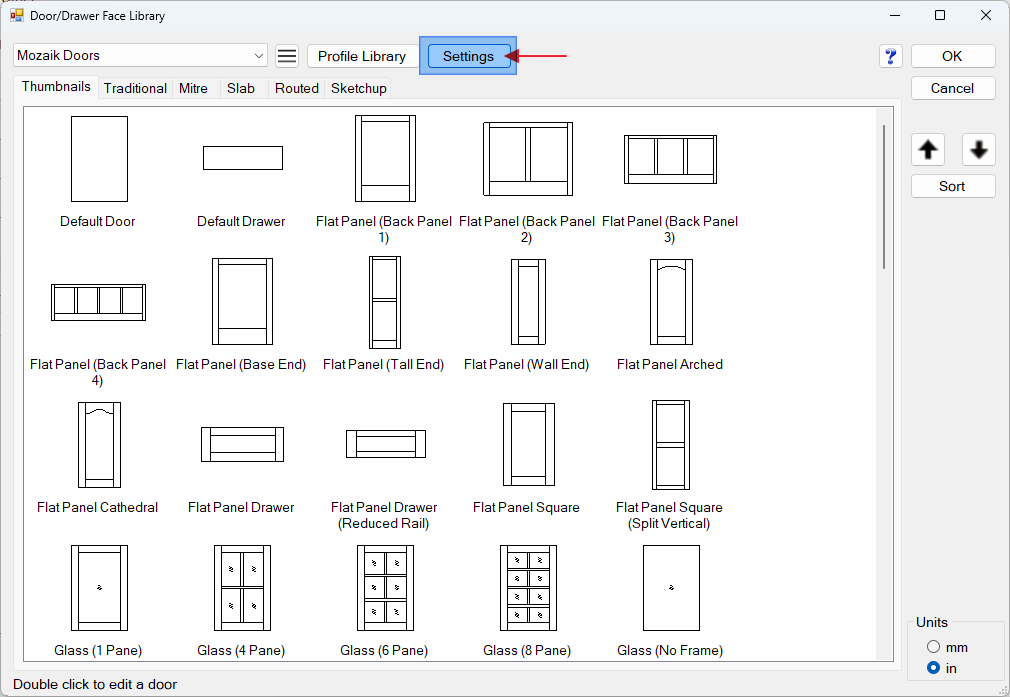

For that go to Libraries Doors Settings

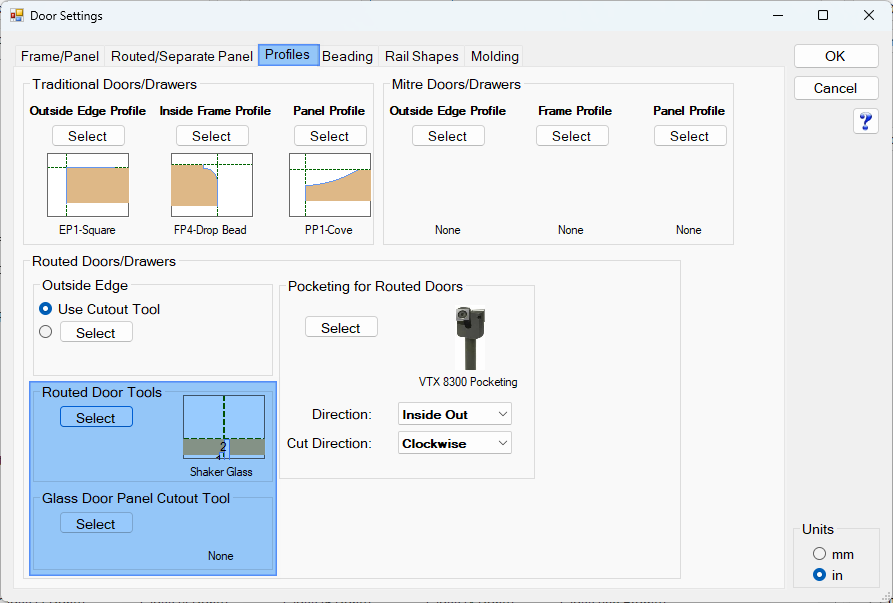

...Settings Profiles
- Select the new Panel Tool Group for Routed Door Tools
- And set the Glass Door Panel Cutout Tool to None
NOTE:
In this example, I created a panel tool group with a glass cutout and a rabbet for the glass, both to the Flip-Side so that all operations can be machined from one side.
See image below:
