This article was created to display how to create a custom label template:
- In Mozaik, go to File-Print-Print Labels
- Click the Pencil beside the 'Select Label' Dropdown menu to open the Label Editor
- From the Label Selection Dropdown menu, choose '+ Add Label Template'
- Enter a Name for the Label-Ok
- In Label Setup, set the Type
- Cabinet: Template for Cabinet Labels printed from Mozaik
- Part: Template for Part Labels printed from Mozaik
- Nested: Template for Part Labels printed from the Optimizer
- Set the Label Size
- You can choose a Standard Label sizes and click 'Use' or enter your own dimensions and click Ok.
- If you want the Labels to Print Landscape, you'll want to click the 'Print Landscape' Checkbox.
- Once the Label Setup is chosen, click 'Ok'
- Add any Variables that you want to include for the Label & design it to your specifications
- The Variables & Drawings available will change based on which Label Type you selected
To transfer your Label Templates to CNC Operator,
- Go to C:/Mozaik/Data

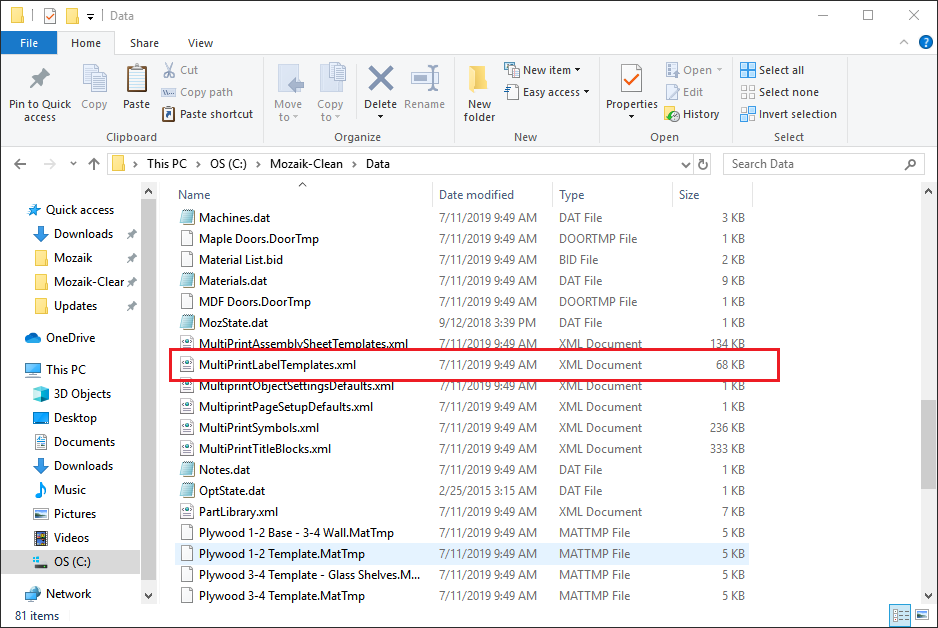

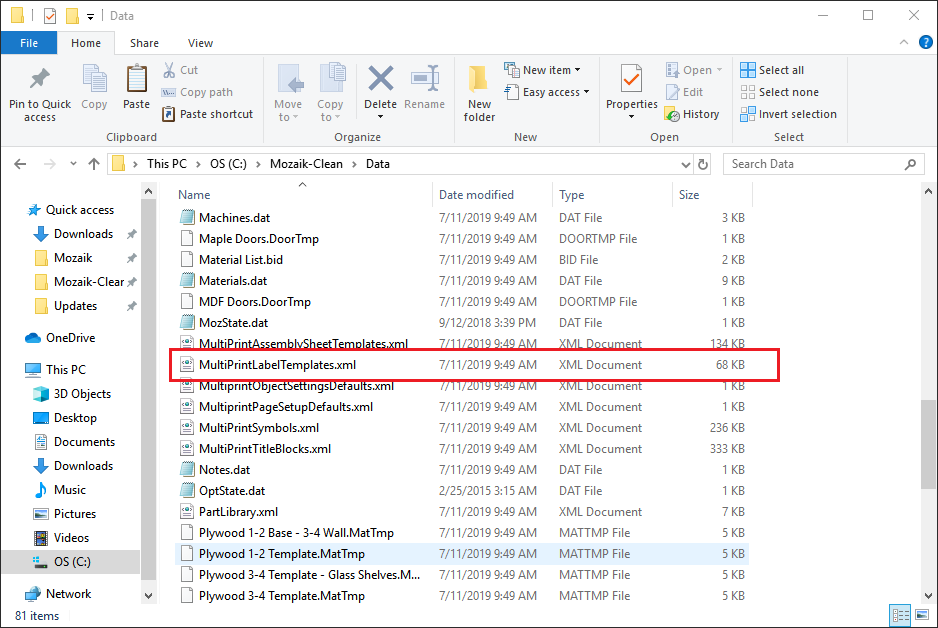

- Copy the file MultiPrintLabelTemplates.xml
- Ensure CNC Operator is not running
- Paste the file in C:/MozaikCNCOperator/Data.
- Once that is done, you should be able to find and use your Label Template when you next open CNC Operator
