The Door Profile Library lets you create and manage the profiles used to build Traditional and Mitre Frame doors — including the outside edge, inside frame, panel, mitre frame, and applied molding. These profiles determine how your doors are shaped, and they feed directly into your cut list and CNC output.
Door Types
Mitre Frame Display — Two Ways to Show a Mitre Frame Door
There are two ways to display a Mitre Frame Door:
- Outside Edge / Inside Frame / Panel — Used when "Default" is set in the door's mitre profile selection.
- Frame Profile — Used when a specific Frame Profile is selected when creating the door.
Profile Library Tabs

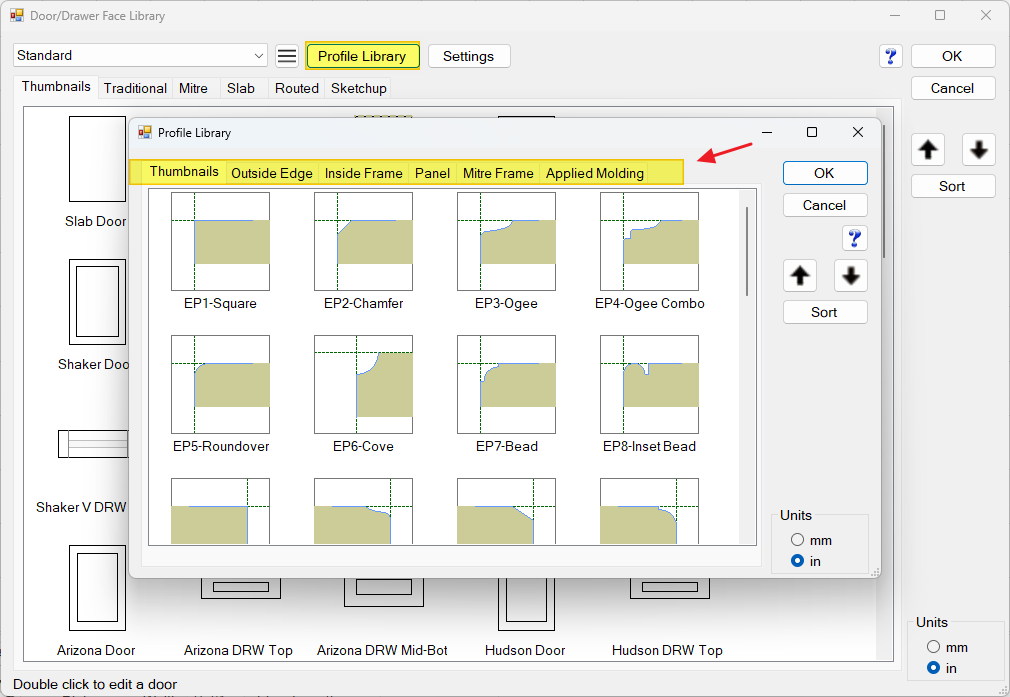

The Profile Library is organized into six tabs, each controlling a different part of the door.
| Tab | Controls |
|---|---|
| Thumbnails | Browse and reorder every profile in your library |
| Outside Edge | Edge profile around the outside perimeter — Traditional doors, or Mitre Frame doors set to Default |
| Inside Frame | Profile around the inside of the door's frame — Traditional or Default Mitre Frame doors |
| Panel | Profile around the panel — Raised Panel Traditional or Default Mitre Frame doors |
| Mitre Frame | Cross-section of the mitre frame member; combined with the Panel Profile to form the finished door shape |
| Applied Molding | Shape of the applied molding profile, placed relative to the inside corner of the door frame |
Thumbnails — Browse and Reorder Profiles

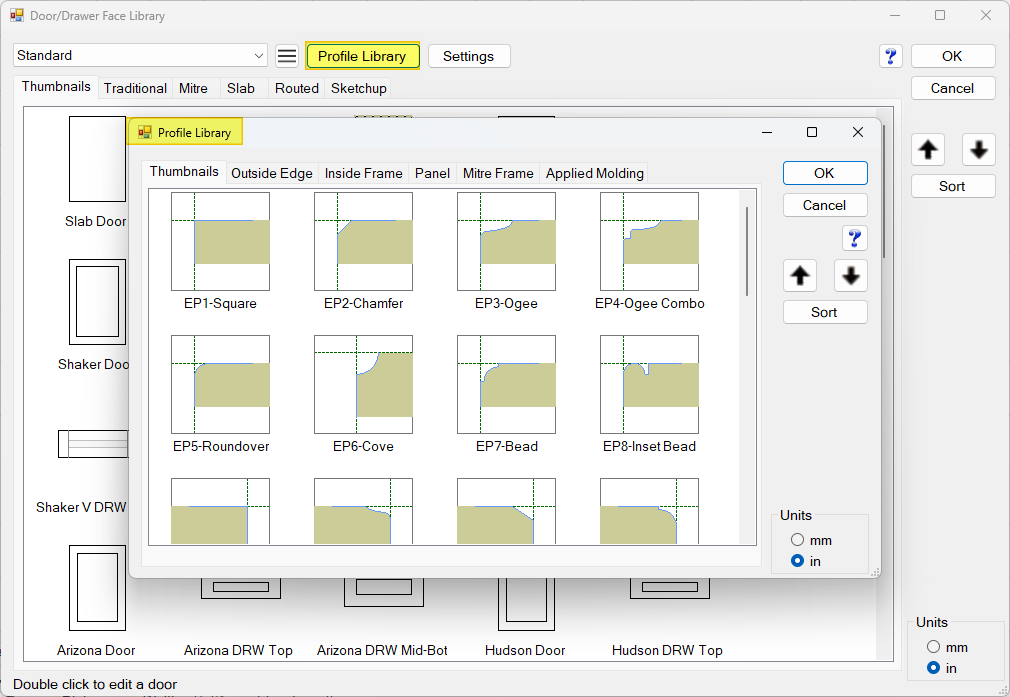

The Thumbnails Tab shows a graphic thumbnail preview of every profile in your library. Double-click a thumbnail to instantly open it in the editor.
- OK — Closes the window and saves your changes.
- Cancel — Closes the window without saving.
- Up/Down Arrows — Manually reorder profiles.
- Sort — Organizes the library alphabetically.
Profile Editor — Shared Controls
The Outside Edge, Inside Frame, Panel, Mitre Frame, and Applied Molding tabs share the same editor layout and controls.
| Control | Function |
|---|---|
| Profile Dropdown | Select the profile to view or edit |
| Add new point | Add a point to the profile |
| Delete selected point | Remove the selected point |
| Bulge line segment | Convert a line segment into a bulge |
| Radius point | Convert a point into a radius |
| Save profile | Save changes to the profile |
| Undo / Redo last action(s) | Step backward or forward through recent edits |
| Zoom / Zoom to extents | Zoom in/out or fit the profile to the view |
| Preview profile in 3D | View the profile as a 3D preview |
| Add / Copy / Delete / Rename | Manage profiles in the library (sidebar) |
| Export / Import | Export a profile, or import profiles from file (sidebar) |
| Snap points to grid / View the Grid / Grid spacing | Grid display and snapping options |
| Point XY Coordinates | View or modify the X/Y coordinates of the selected point |
Frame Width — Mitre Frame Tab Only
Sets the width used for the mitre profile. This is important when designing the Mitre Frame Profile, since it is combined with the Panel Profile to produce the finished door shape.
Applied Molding Axis — Placement Reference
The Applied Molding profile is the entire molding shape. Check the placement of your shape against the Inside Corner of Door Frame axis shown at the bottom of the tab to ensure correct orientation.
Quick Reference
| Tab | Purpose |
|---|---|
| Thumbnails | Browse/reorder the profile library |
| Outside Edge | Outside perimeter edge profile (Traditional / Default Mitre Frame) |
| Inside Frame | Inside frame profile (Traditional / Default Mitre Frame) |
| Panel | Raised panel profile (Traditional / Default Mitre Frame) |
| Mitre Frame | Mitre frame member cross-section, plus Frame Width |
| Applied Molding | Applied molding shape, placed relative to the frame axis |
Common Issues
- Profile changes not appearing on the door: Confirm you clicked Save profile before closing the editor.
- Mitre Frame Door not showing the expected profile: Check whether the door's mitre profile selection is set to Default (uses Outside Edge / Inside Frame / Panel) or a specific Frame Profile — these are two separate profile sources and only one applies at a time.
- Point edits snapping to unexpected locations: Check Grid Options — Snap points to grid may be enabled with a grid spacing larger than expected.
- Applied Molding appears mirrored or offset: Review the placement of your shape relative to the Inside Corner of Door Frame axis on the Applied Molding tab.
Troubleshooting
- If a profile edit doesn't appear to save, reopen the Profile Library and confirm the profile reflects your changes — always click Save profile before navigating away from the editor.
- Frame Width only affects the Mitre Frame tab and is combined with the Panel Profile — changing Frame Width without an assigned Panel Profile will not visibly change the finished door.
- The Outside Edge, Inside Frame, and Panel tabs only apply to Mitre Frame doors when "Default" is selected in the door's mitre profile setting. If a specific Frame Profile is selected instead, these three tabs are not used for that door.
