Mozaik AI Rendering

Overview

Mozaik AI Rendering allows you to turn your Mozaik designs into presentation-quality images directly inside the software. With the push of a button, you can create photorealistic renders, architectural concept images, or pencil-style sketches without needing to manually configure a separate rendering program or write AI prompts.

AI Rendering is built directly into Mozaik and uses the information already contained in your design. Your cabinet layout, geometry, materials, and joinery are maintained while AI enhances the lighting, environment, staging, and overall presentation of the scene.

AI Rendering is an optional add-on available for active Mozaik Manufacturing, CNC, and Enterprise subscriptions.

What Is AI Rendering?

AI Rendering is designed to make it easier to create customer-ready visuals from your Mozaik designs.

Instead of manually building a detailed rendering scene, adding decorative models, configuring lighting, or writing prompts in an external AI application, you can select the desired options inside Mozaik and click Render.

AI Rendering can automatically enhance the presentation of the room by adding:

• Realistic lighting
• Exterior environments
• Cabinet lighting
• Furnishings and decorative staging
• Lifestyle elements
• Photorealistic finishes and reflections

No AI experience or complex prompt writing is required. Mozaik handles the AI instructions and design information behind the scenes.

AI Rendering vs. Cloud Rendering

Mozaik offers both Cloud Rendering and AI Rendering from the Render tab in the 3D Viewer. The main difference is how much of the rendering process you control manually.

Cloud Rendering gives you direct control over traditional rendering settings such as image size, aspect ratio, HDRI, global lighting, exposure, and shadows.

AI Rendering uses simpler presentation-based controls. You choose the overall look you want, and Mozaik handles much of the rendering setup in the background.

Cloud Rendering

Cloud Rendering is best suited for users who want to manually control settings such as:

• Image size and aspect ratio
• Lighting and exposure
• HDRI and shadows

AI Rendering

AI Rendering focuses on presentation choices such as:

• Style – Photo, Concept, or Pencil
• Mood – Time of day and lighting conditions
• Exterior – What appears outside windows
• Cabinet Lighting
• Staging – Low, Medium, High, or Custom

Custom staging can be used to request specific types of items such as flowers, plants, coffee items, books, people, or other scene-specific accessories.

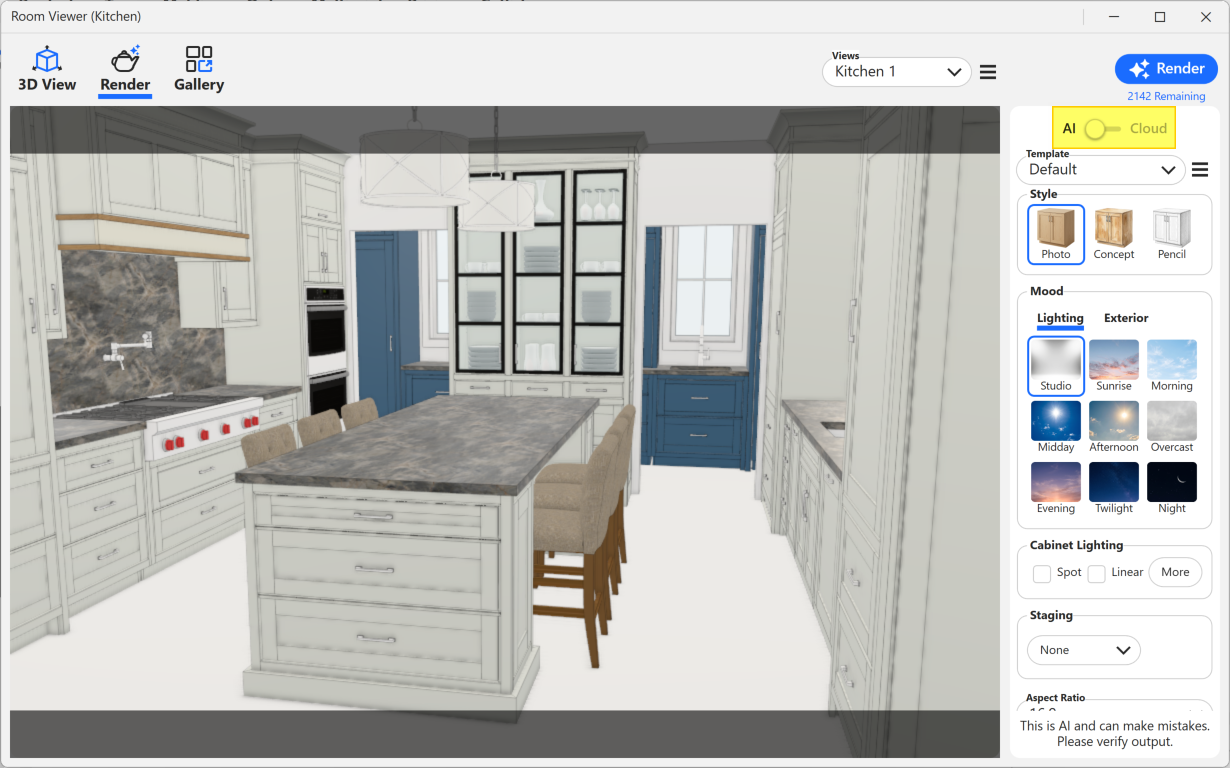

Switching Between AI and Cloud

If your subscription includes AI Rendering, you can toggle between AI and Cloud directly from the Render tab.

AI Rendering packages also include Cloud Rendering, so both rendering methods remain available.

Accessing AI Rendering

To create an AI render:

1. Open your design in Mozaik.

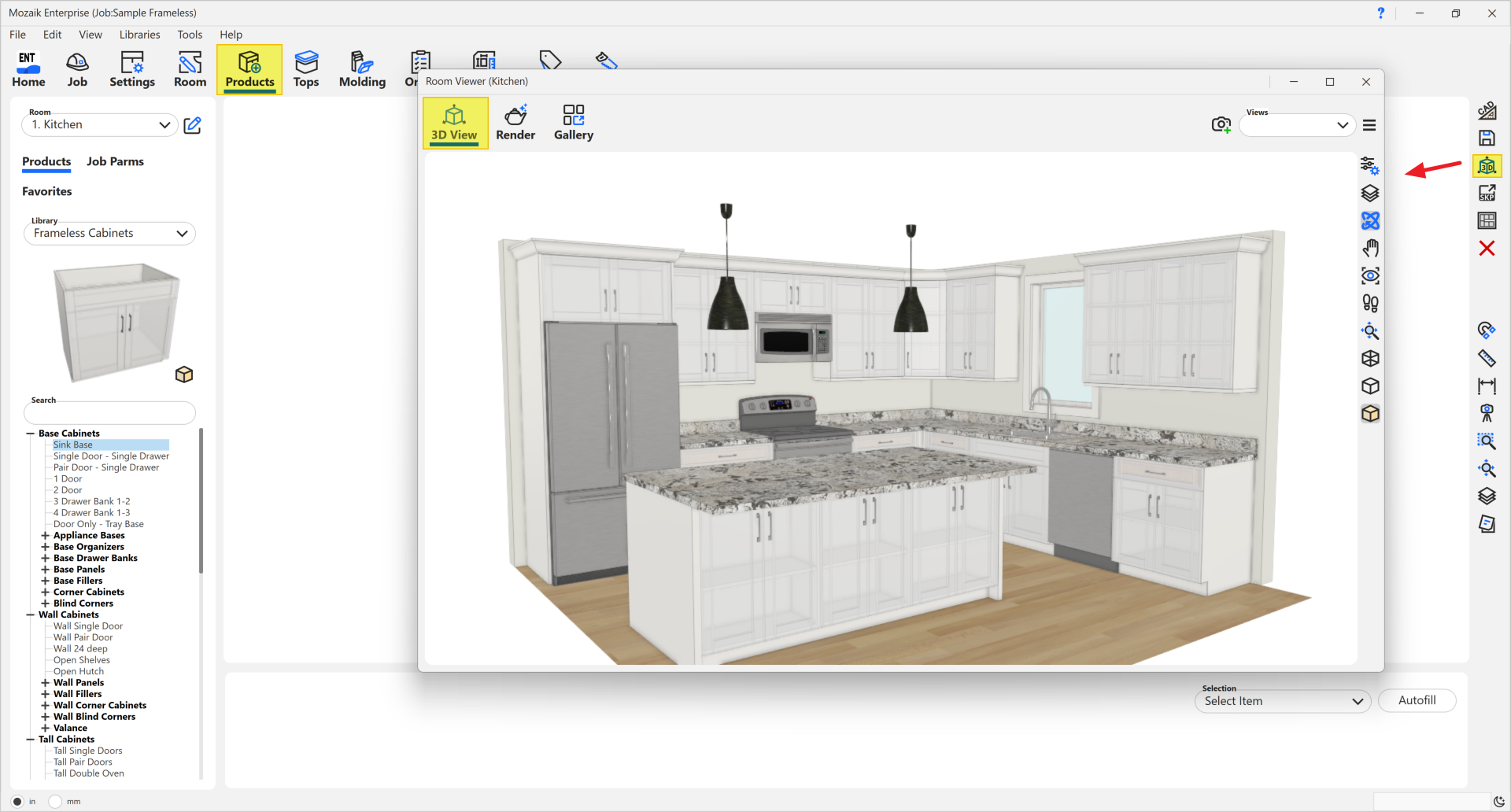

2. Open the 3D Viewer.
3. Position the view at the angle you want to render.
4. Open the Render options.
5. Select AI Rendering.
6. Choose your desired rendering settings.
7. Click Render.

Mozaik prepares the design information, sends the required scene information to the rendering service, and generates the completed image.

While a render is being generated, you can also select Cancel if you no longer want to complete that render.

AI Rendering Options

The rendering interface allows you to control the overall appearance of the image before generating it.

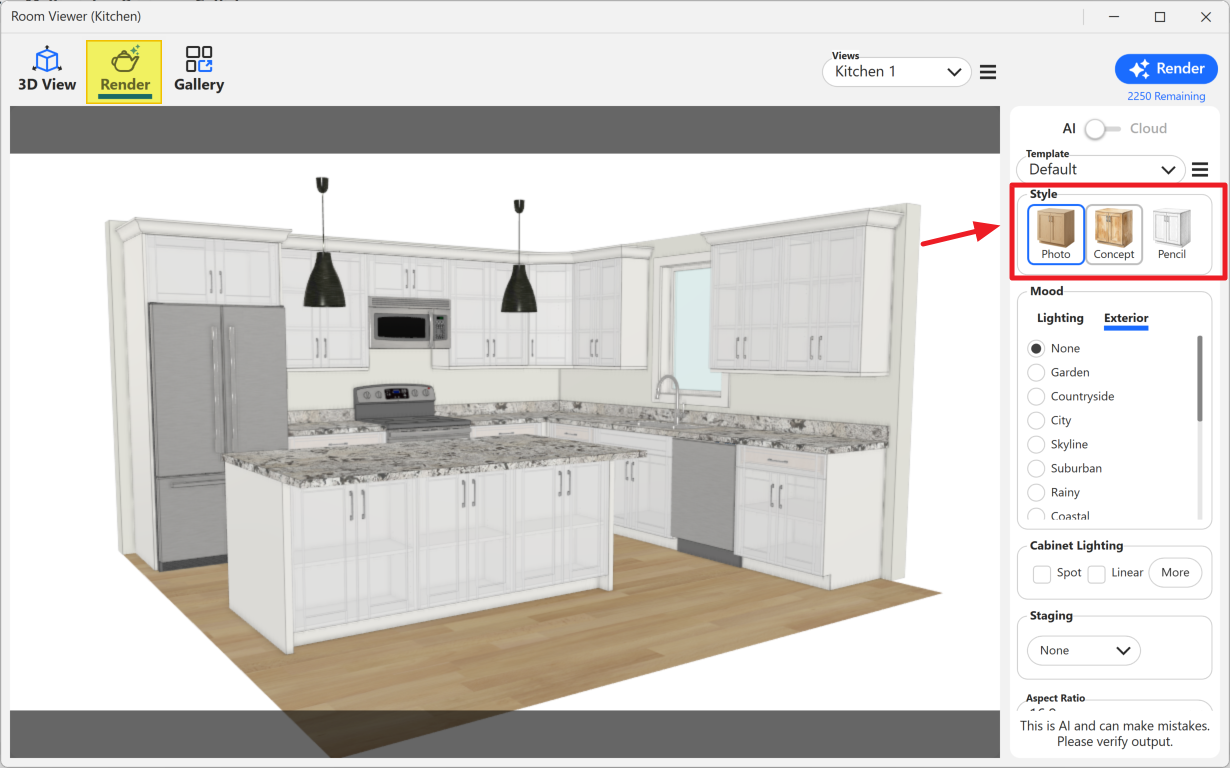

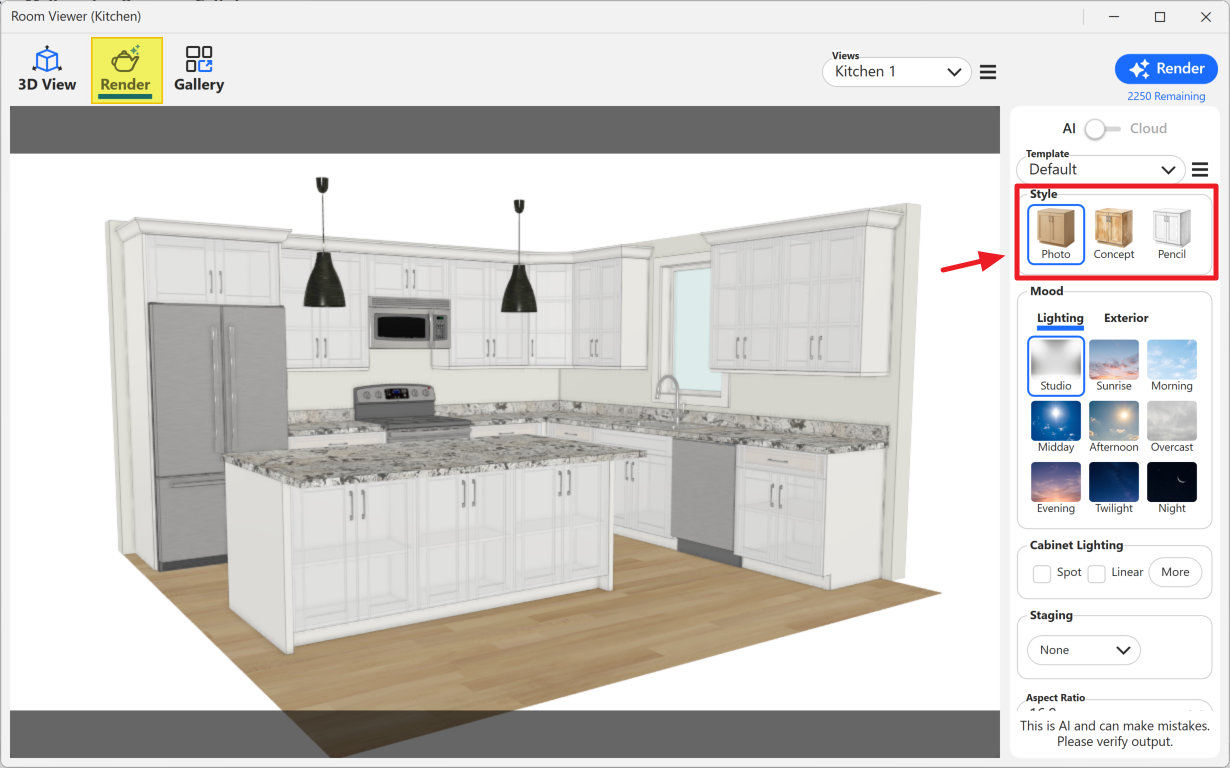

Render Style

Choose the visual style of the finished image.

Photorealistic will typically be used when you want to show the customer what the completed project may look like.

Concept and Pencil can be useful when you want a more artistic presentation or want the drawing to retain the appearance of an architectural concept.

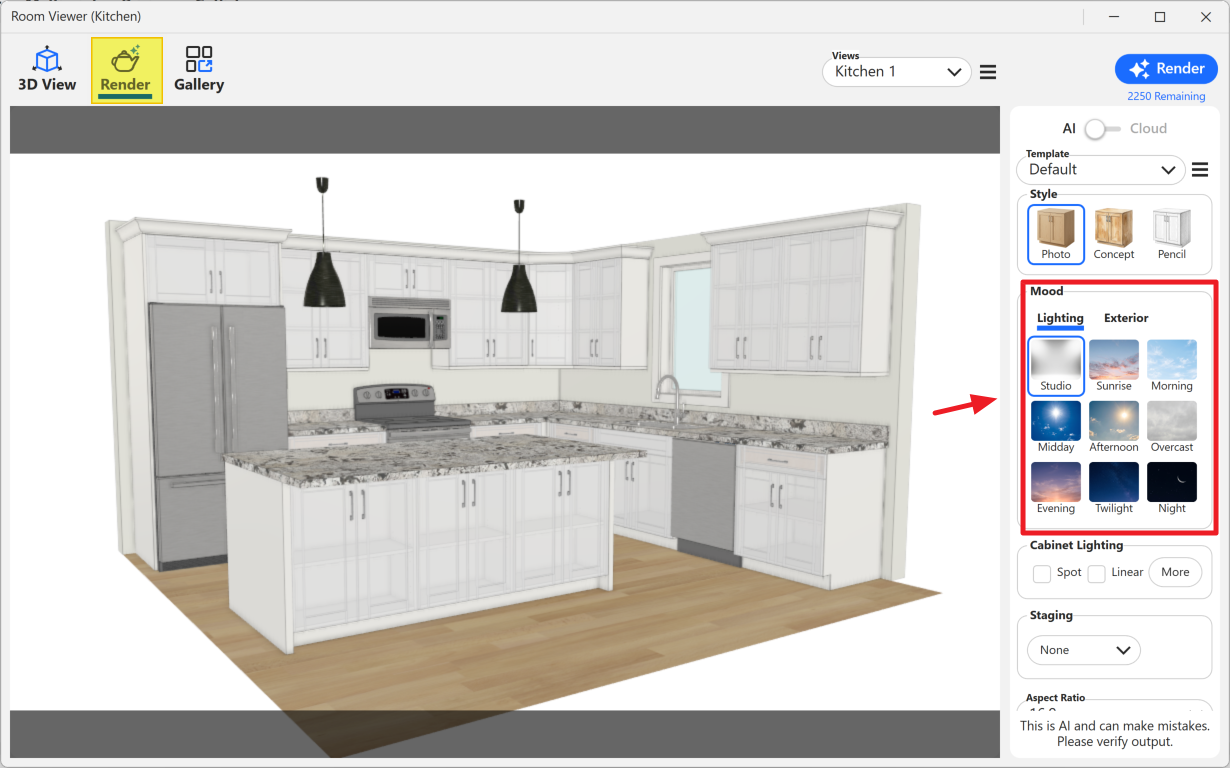

Mood and Lighting Conditions

Use the Mood settings to control the general lighting and time-of-day appearance of the scene.

Available options can be used to create conditions such as:

• Studio lighting
• Sunrise
• Midday
• Evening
• Twilight

Changing the mood can dramatically change the appearance of the same design without requiring you to modify the room itself.

For example, a midday render can be used for a bright presentation of the cabinetry, while a twilight render can emphasize cabinet lighting and create a more dramatic scene.

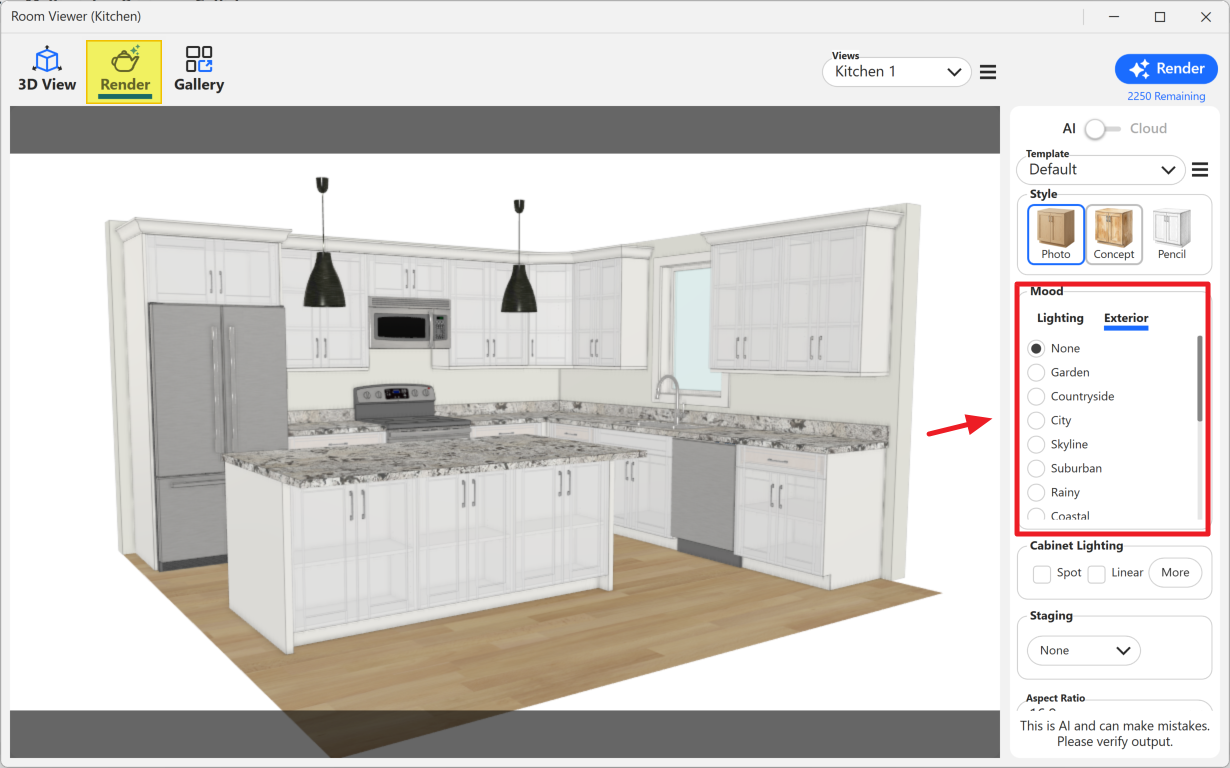

Exterior Environment

AI Rendering can also control what appears outside windows in the design.

For example, you can create an exterior environment such as:

• Garden views
• Different weather conditions
• A simplified or blurred exterior

The exterior setting allows the environment outside the room to better match the presentation you are trying to create.

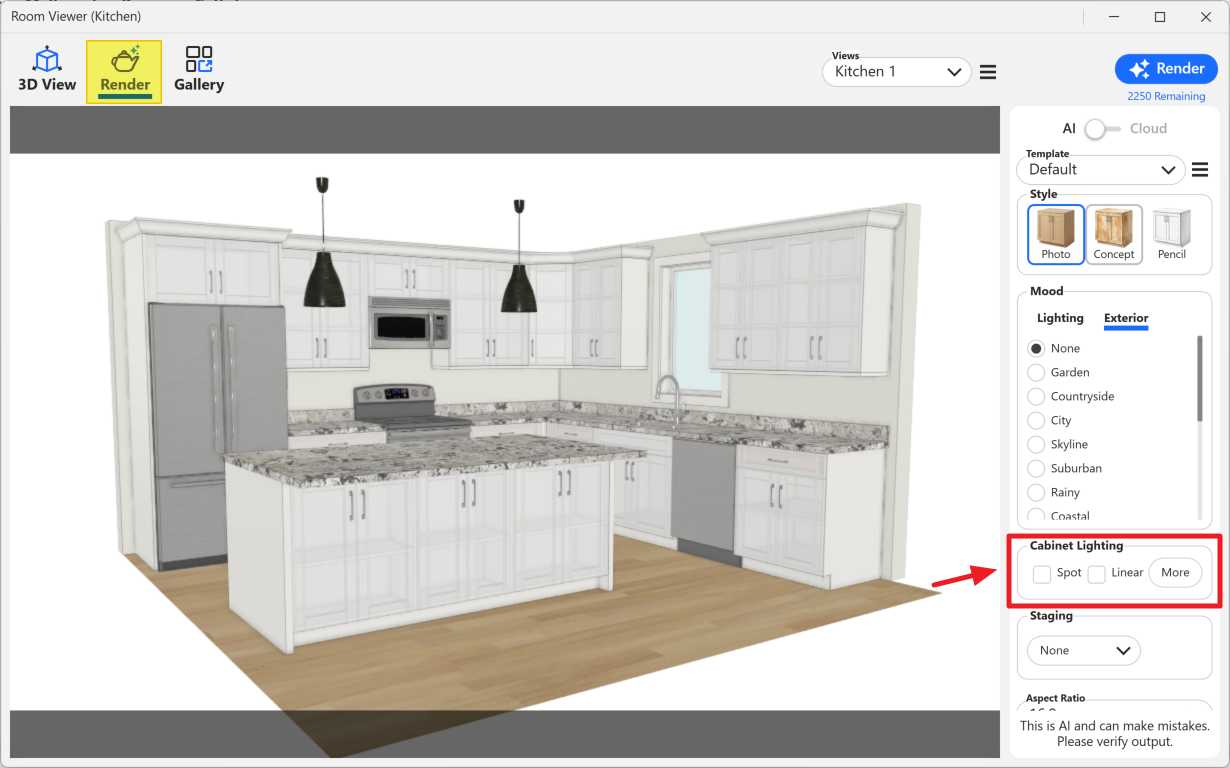

Cabinet Lighting

AI Rendering can enhance cabinet lighting without requiring you to manually build each lighting effect into the rendered scene.

Depending on the design, lighting options can include:

• Spotlights / downlights / puck lights
• Linear or LED lighting
• Lighting inside openings
• Lighting behind glass doors or glass sections
• Toe kick lighting

Cabinet lighting can be especially effective when combined with an evening or twilight mood.

Staging

Staging allows AI Rendering to automatically add decorative and lifestyle elements to the room.

Instead of manually placing items such as a coffee maker, flowers, books, bowls, or other decorative objects into the design, AI can add appropriate items when the image is rendered.

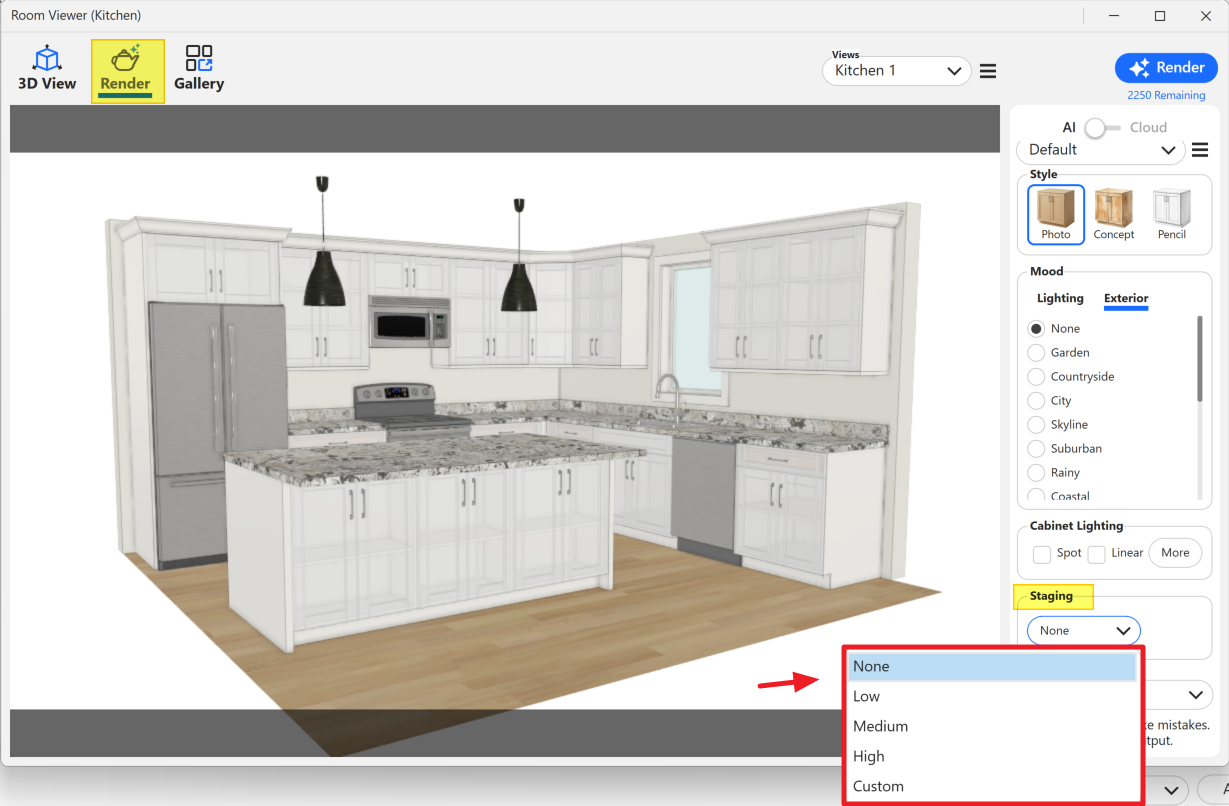

Staging Levels

Choose the amount of staging you want AI to add:

Low

Adds a small amount of staging. This will generally result in approximately one or two additional items.

Medium

Adds additional decorative elements throughout the scene. This will generally result in approximately three or four items.

High

Creates a more heavily staged presentation. This may add approximately five or six items to the scene.

These amounts are approximate. AI determines the final objects and placement based on the design and selected settings.

Custom Staging

Select Custom when you want to provide more specific direction about what should be included in the scene.

Custom staging can be useful for specialized spaces such as:

• Bars
• Wine cellars
• Closets
• Garages
• Workshops

You can also request specific elements such as flowers, fruit, or a person in the scene.

Important: Use staging carefully. The more staging or highly specific custom instructions you request, the more freedom the AI has to interpret what should be added to the image. Review every generated render before presenting it to a customer.

The cabinetry and design geometry remain based on your Mozaik design, but AI-generated decorative elements may vary between renders.

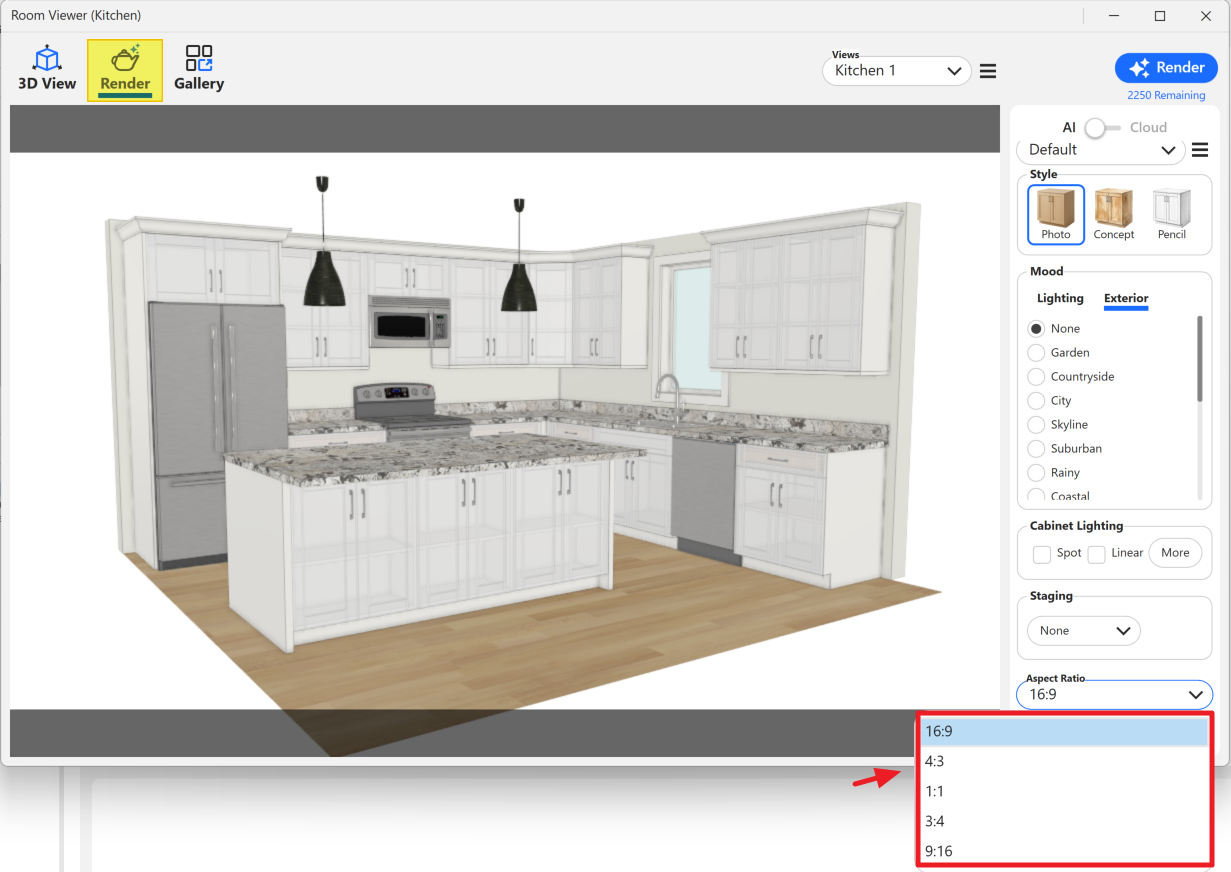

Aspect Ratio

Select an aspect ratio based on how the finished image will be used.

For example:

• 16:9 works well for wide-format presentations and screens.
• 9:16 can be useful for vertical content such as social media stories.

Choosing the appropriate aspect ratio before rendering can reduce the need to crop the completed image later.

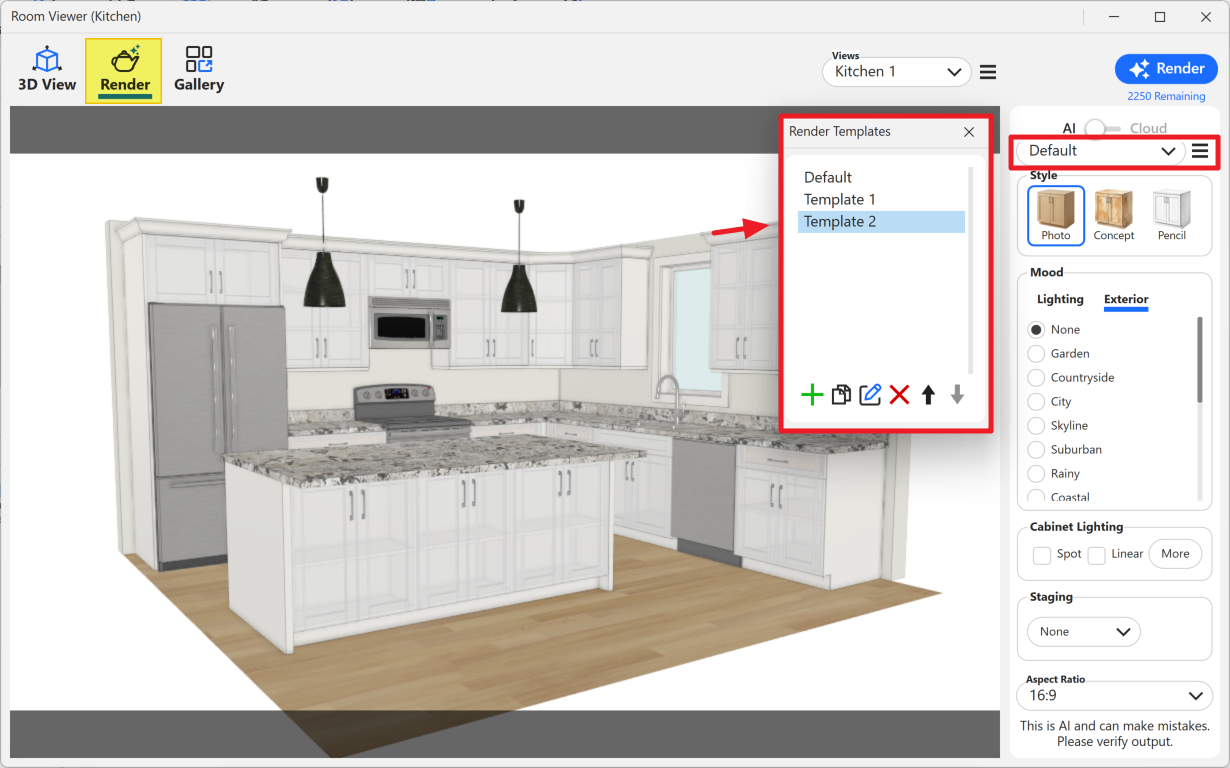

Render Templates

Rendering settings can be saved as Templates.

Templates are useful when you regularly create renders using the same combination of:

• Render style
• Mood
• Exterior environment
• Cabinet lighting
• Staging
• Other rendering settings

Instead of configuring each option every time, select the appropriate template and render the design.

This can help maintain a consistent presentation style across multiple jobs.

Workflow: Creating an AI Render

Step 1: Choose Your View

1. Open the design in the 3D Viewer.
2. Navigate to the desired viewing angle.
3. Make sure the room is framed the way you want it presented.

Step 2: Open AI Rendering

1. Open the Render section.
2. Select AI Rendering instead of Cloud Rendering.

Step 3: Select a Render Style

Choose:

• Photorealistic
• Concept
• Pencil

Step 4: Set the Mood

Choose the desired lighting condition or time of day.

For example:

• Midday for a bright daytime presentation
• Twilight for a more dramatic presentation with cabinet lighting

Step 5: Choose an Exterior

Select the environment you want displayed outside the windows.

Step 6: Configure Cabinet Lighting

Enable the desired cabinet lighting options.

Step 7: Select Staging

Choose:

• Low
• Medium
• High
• Custom

For your first render, consider starting with Low staging.

Step 8: Select the Aspect Ratio

Choose the format that best matches where the image will be used.

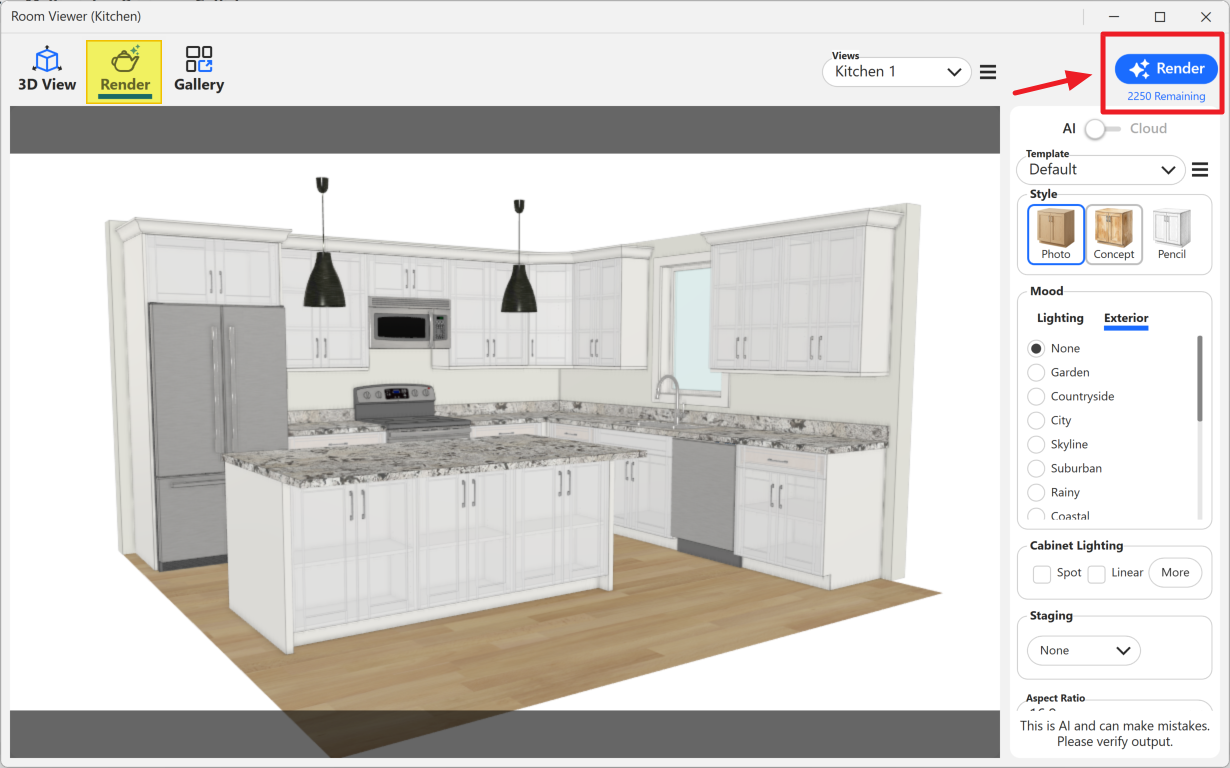

Step 9: Render

Click Render.

Mozaik processes the scene and creates the AI-rendered image.

Review the completed image and adjust the settings or render again if you would like a different presentation.

AI Renders in MultiPrint

AI and Cloud renders can be used directly in MultiPrint.

Once a render has been created, it becomes available from the MultiPrint sidebar. Drag and drop the render directly onto the MultiPrint page and resize it as needed.

There is no need to:

• Take a screenshot
• Export the image
• Save it separately
• Re-import the image into MultiPrint

Automatic Render Updates

Render views placed in MultiPrint will automatically update when those views are re-rendered.

This allows you to change the rendering settings and generate a new version without manually replacing the image in your MultiPrint presentation.

For example:

1. Create a photorealistic render.
2. Add the render to your MultiPrint page.
3. Return to the 3D Viewer.
4. Change the render to a Concept style.
5. Re-render the view.
6. Return to MultiPrint.

The updated render will be available without having to manually replace the image.

AI Rendering Pricing

Rendering options are priced per company, not per Mozaik seat or individual user.

The rendering allowance is shared across your company, regardless of how many Mozaik seats you have. AI Rendering is available as an add-on for active Mozaik Manufacturing, CNC, and Enterprise subscriptions.

AI Render Credits

Your remaining AI render credits are displayed directly in Mozaik's 3D Viewer, next to the Render button.

AI render credits:

• Reset each month
• Do not roll over into the next month
• Cannot currently be purchased as individual top-ups

If your company regularly requires more AI renders, you can upgrade from AI Rendering to AI Rendering Plus.

Upgrading or Downgrading

You can upgrade to a higher rendering tier during your annual subscription term.

Downgrades are handled at your annual renewal. For example, if you upgrade to AI Rendering Plus during your subscription term, that rendering tier remains active until your next renewal, when you can select a different rendering option.

Purchasing AI Rendering

AI Rendering is an optional Mozaik add-on.

If you are interested in purchasing AI Rendering, sign in to your Cyncly Portal and look for the AI Rendering option available for your Mozaik subscription.

Open the Cyncly Portal

For current pricing and package information, see:

Mozaik AI Rendering Pricing & Information

Best Practices

💡 Start With Low Staging - Low staging is a good starting point when you want AI to enhance the room without adding too many decorative elements.

💡 Use Staging Carefully - AI-generated accessories are interpretive. Increasing the staging level gives AI more opportunities to add items to the scene.

💡 Review Every Render - Always look closely at the completed image before including it in a customer presentation.

💡 Use Mood to Highlight Lighting - Evening or twilight settings can be especially useful when demonstrating toe kick, interior, or LED cabinet lighting.

💡 Use Templates for Consistency - Save frequently used combinations of render settings as templates so presentations remain consistent from job to job.

💡 Match the Aspect Ratio to the Presentation - Use a wide format for typical presentations and a vertical format when preparing content for vertical displays or social media.

💡 Try Multiple Styles - The same design can be rendered as a photorealistic image for the customer and as a Concept or Pencil image for a more architectural presentation.

💡 Use MultiPrint Integration - Add renders directly to your MultiPrint layouts instead of exporting and manually inserting images.

Troubleshooting

Problem: I only see Cloud Rendering and cannot select AI Rendering

✅ Verify that AI Rendering or AI Rendering Plus has been added to your Mozaik subscription.

✅ AI Rendering was introduced with Mozaik Version 15, so make sure you are using a supported version.

Problem: AI added too many objects to the room

✅ Reduce the staging level.

✅ Try Low staging instead of Medium or High.

✅ If using Custom staging, reduce the number of requested items.

Problem: A staged item is not what I expected

✅ AI staging is interpretive and may produce different results each time.

✅ Modify the staging options and generate another render.

✅ Use less staging when the cabinetry itself should be the primary focus.

Problem: I have used all of my AI renders for the month

✅ AI render credits cannot currently be topped up individually.

✅ Credits reset each month.

✅ Companies that regularly need additional rendering capacity can upgrade to AI Rendering Plus.

Problem: My AI render allowance did not carry over from last month

✅ Unused AI render credits do not roll over.

✅ A new render allowance is provided each month based on your selected package.

Problem: I changed my render but the image is already in MultiPrint

✅ Render views placed in MultiPrint are designed to update as the corresponding view is re-rendered.

Frequently Asked Questions

Q: Do I need to know how to use AI or write prompts?

A: No. AI Rendering is built into Mozaik. You choose the rendering options and Mozaik handles the AI instructions behind the scenes.

Q: Does AI Rendering change my cabinet design?

A: AI Rendering is designed to preserve the cabinet layout, geometry, materials, and joinery from your Mozaik design while enhancing the visual presentation. AI-generated staging and decorative elements can vary between renders.

Q: Is AI Rendering included with my standard Mozaik subscription?

A: AI Rendering is an optional add-on available for active Mozaik Manufacturing, CNC, and Enterprise subscriptions.

Q: Does AI Rendering include Cloud Rendering?

A: Yes. Both AI Rendering packages include unlimited Cloud renders.

Q: How many AI renders do I receive?

A: The standard AI Rendering package includes 250 AI renders per month. AI Rendering Plus includes 2,000 AI renders per month.

Q: Is pricing based on how many Mozaik seats we have?

A: No. Rendering packages are priced per company, and the rendering allowance is shared across the company.

Q: Where can I see how many AI renders I have left?

A: Your remaining AI render credits are shown in the 3D Viewer next to the Render button.

Q: Do unused AI renders carry over?

A: No. The AI render allowance resets each month.

Q: Can I purchase additional renders if I run out?

A: Not currently. Individual top-ups are not available. If you regularly require more capacity, you can upgrade to AI Rendering Plus.

Q: Can I upgrade during my subscription?

A: Yes. You can upgrade to a higher rendering tier during your annual subscription term. Downgrades are handled at your next annual renewal.

Q: Can AI renders be added to MultiPrint?

A: Yes. AI and Cloud render views can be dragged directly into MultiPrint. When a render view is re-rendered, the view in MultiPrint will update automatically.
