If you are looking just to add a hood to be visualized, you have a few options built into Mozaik. This will give the different options from the ones that are built in, to the most customized options so that you can choose what will work best for you. Let us know if you have any questions, or if you would like to have instructions for hoods to be cutout on the CNC.
Option 1: Adding a hood from the Rooms tab

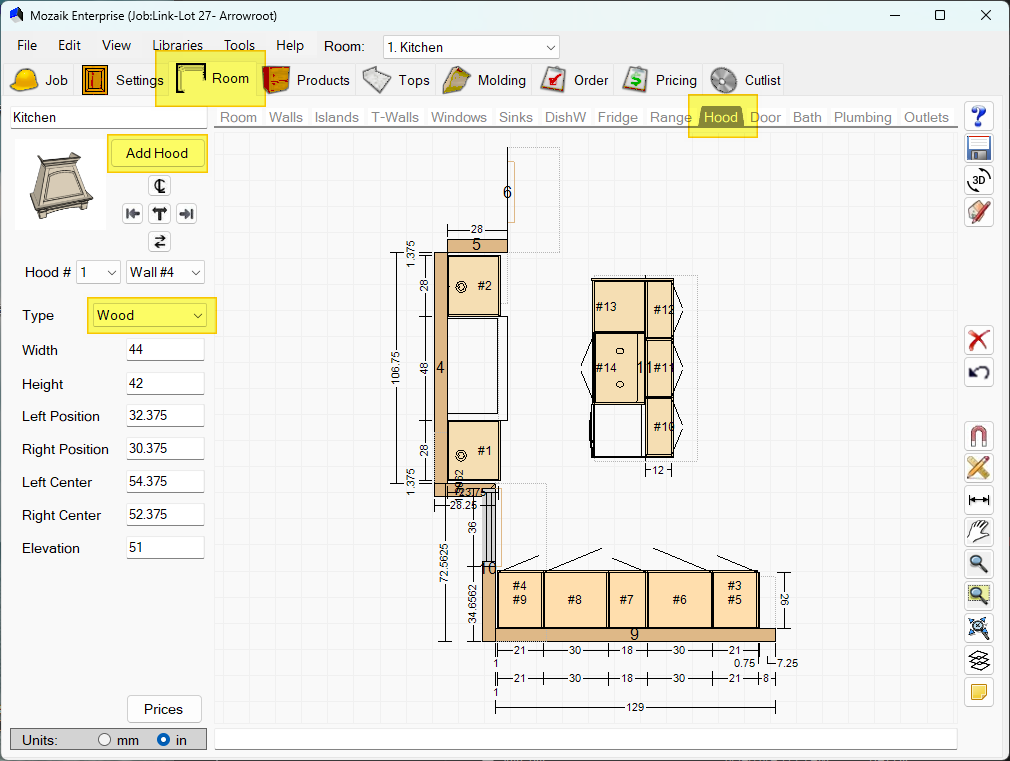

From the rooms tab, you are able to add a hood by selecting the Hood tab, and setting your hood properties. Choose the type, and then click Add hood:
Option 2: Adding a product from the Library

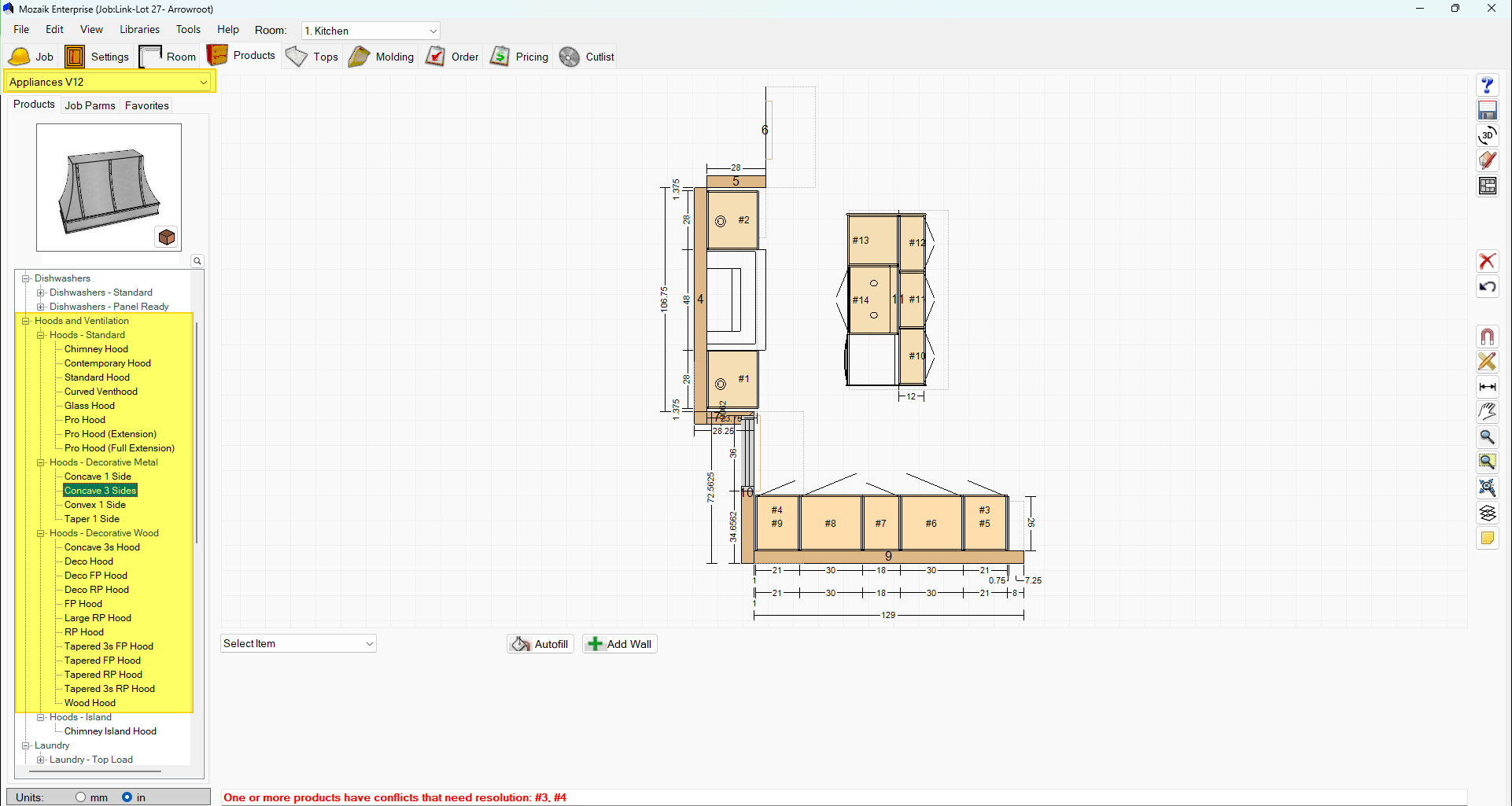

The next option is to add a hood from a library. The Appliances v12 Library has a larger selection of hoods that are for visualization. If you need access to the updated V12, please click the link below for the V12 libraries installer:
Click HERE to download the optional V12 Product Library Installer
Option 3: Use a premade Sketchup Model:
The next option is a bit more involved, but again give you another level of customization if your design requires something more specific. You are able to add products from SketchUp models. The 3D Sketchup Warehouse can be found HERE. While this is not maintained by Mozaik, and we cannot guarantee or provide direct support regarding the website or files from the website, many customers find the models that are helpful to get a specific look. Note, you will want to make sure that the model set to the origin for best results. In the sort video below, you can see how to adjust the part to be at the origin and how to add it to your library:
