This article was created to provide information and attachments for the Import method in the Order tab:
To import Order files into Mozaik, navigate to the 'Order' Tab and utilize the provided Template, which is accessible for viewing and editing in Microsoft Excel. The Template file, named Sample Order.mzkord, can be found in your C:/Mozaik Folder. Attached are two updated sample orders.
Before proceeding with the import of Orders into Mozaik, it's essential to be aware of a few key details:
Import Orders are limited to:
- Quantity
- Product Name
- Product Library
- Basic Dimensions (Height, Width, Depth)
- Door
- DrawerBox
- TopDrawerFront
- MidDrawerFront
- BottomDrawerFront
- DoorMatTemp
- DrawerMatTemp
- CaseMatTemp
- BandingMatTemp
- Guide
- Hinge
- DoorPull
- DrawerPull
- Lock
- DrawerFrontFastener
- ShelfPin
The Product Name & Product Library you want to use for the import need to match exactly for the order to import properly.
To see the example file in Excel, please see the following steps
- Open Excel
- Go to the Developer Tab (You may need to include this by going to the Excel Options-Custom Ribbons & add the Developer Tab)

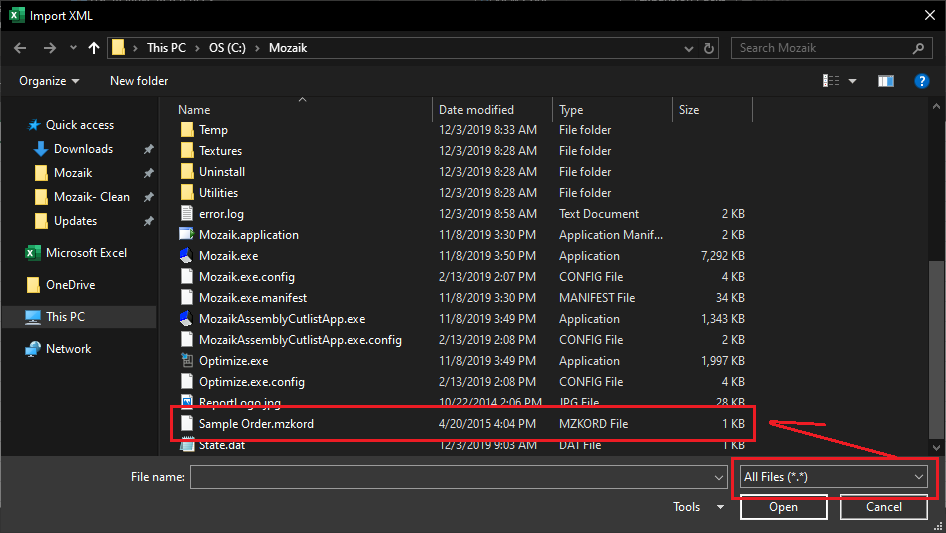

- Select Import, change the file type from XML to All Files & select the Sample Order.mzkord from C:/Mozaik
Once the Order has been completed/edited,

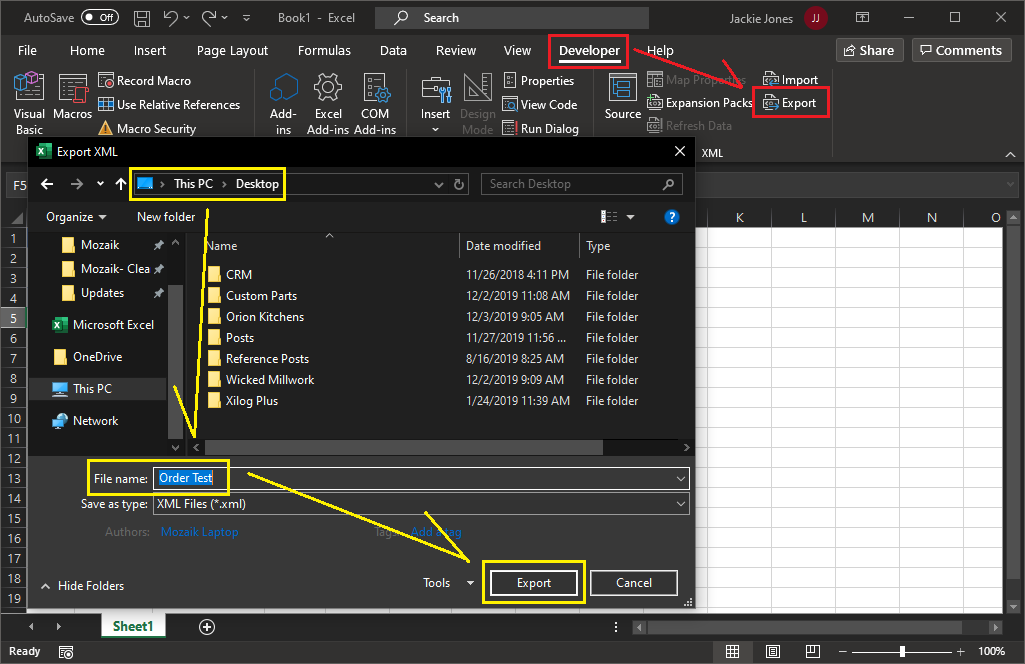

- Go back to the Developer Tab in Excel
- Click 'Export' and choose the location & file name for the order-Export
