This article was created to show how to produce the rabbet for a glass door.
Start by creating a Panel Tool Group using tools available in the toolset.:
For that, go to Optimizer Library CNC Tooling Panel Tool Groups
(See image below)

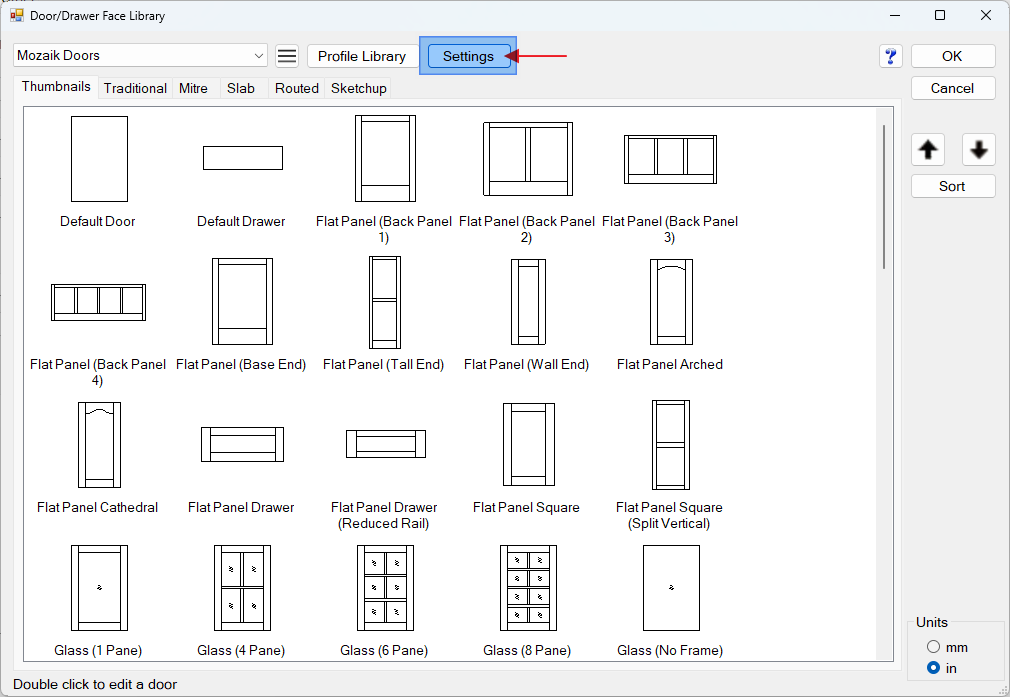

After creating the panel tool group, return to Mozaik and apply the tool group to the door settings. For that go to Libraries->Doors->Settings
...Settings Profiles

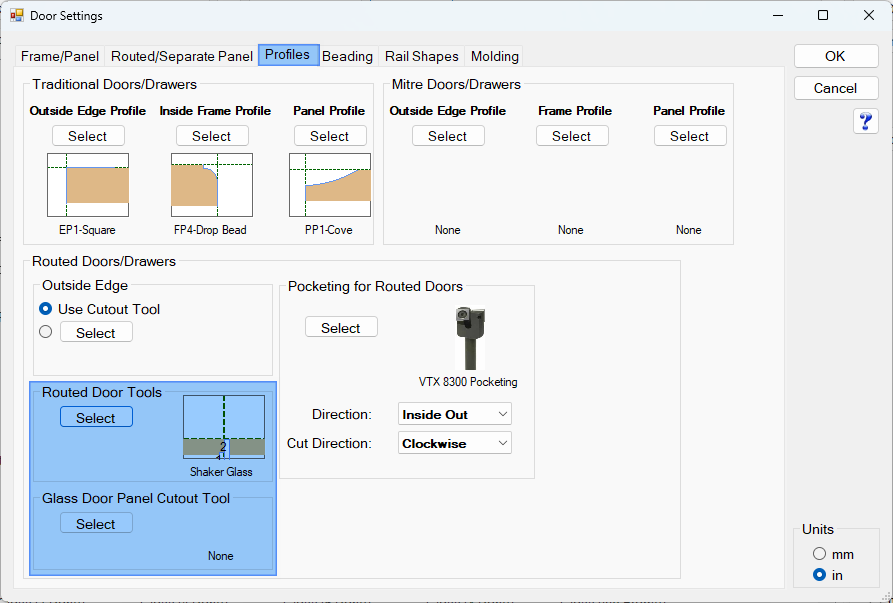

Select the new Panel Tool Group for Routed Door Tools
And set the Glass Door Panel Cutout Tool to None
NOTE:
In this example, I created a panel tool group with a glass cutout and a rabbet for the glass, both to the Flip-Side so that all operations can be machined from one side.
See image below:

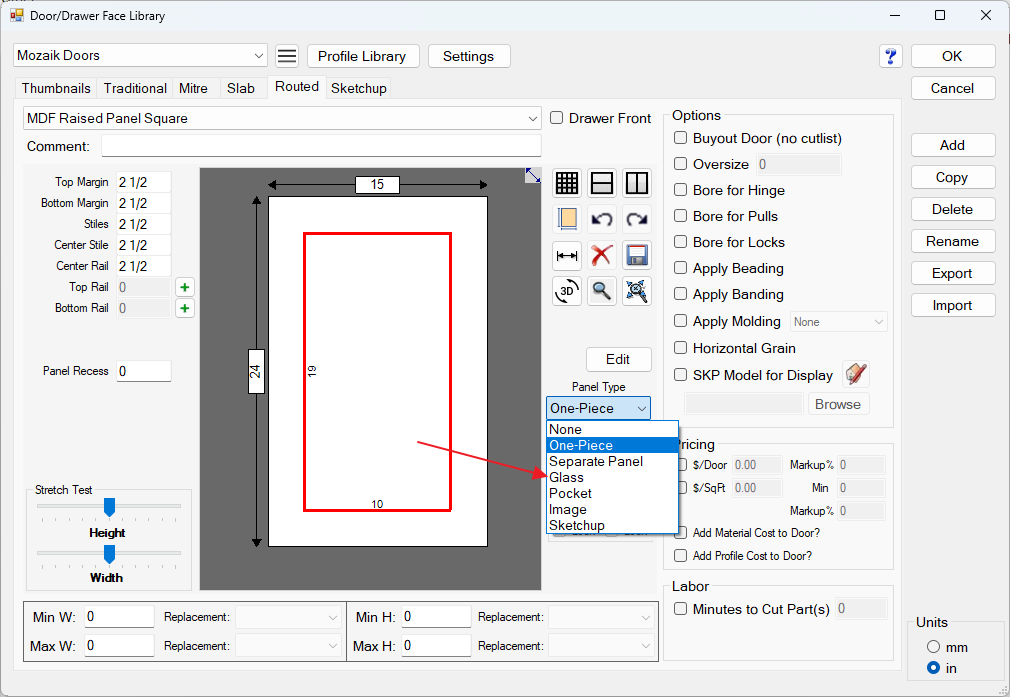

Now you can change the Panel Type of any routed door to "Glass". Make sure to select the corresponding panel tool group to have the glass cutout and a rabbet, both on the flip-side.
See image below:
