The Mozaik Optimizer allows you to control the depth of each cutting pass for your CNC tools. By setting a specific pass depth, you can break down a deep cut into several shallower passes. This helps to prevent tool damage, reduce strain on the machine, and can result in a cleaner cut, especially when working with thick materials.
To alter the number of cutting passes for a tool:
- Open the Mozaik Optimizer

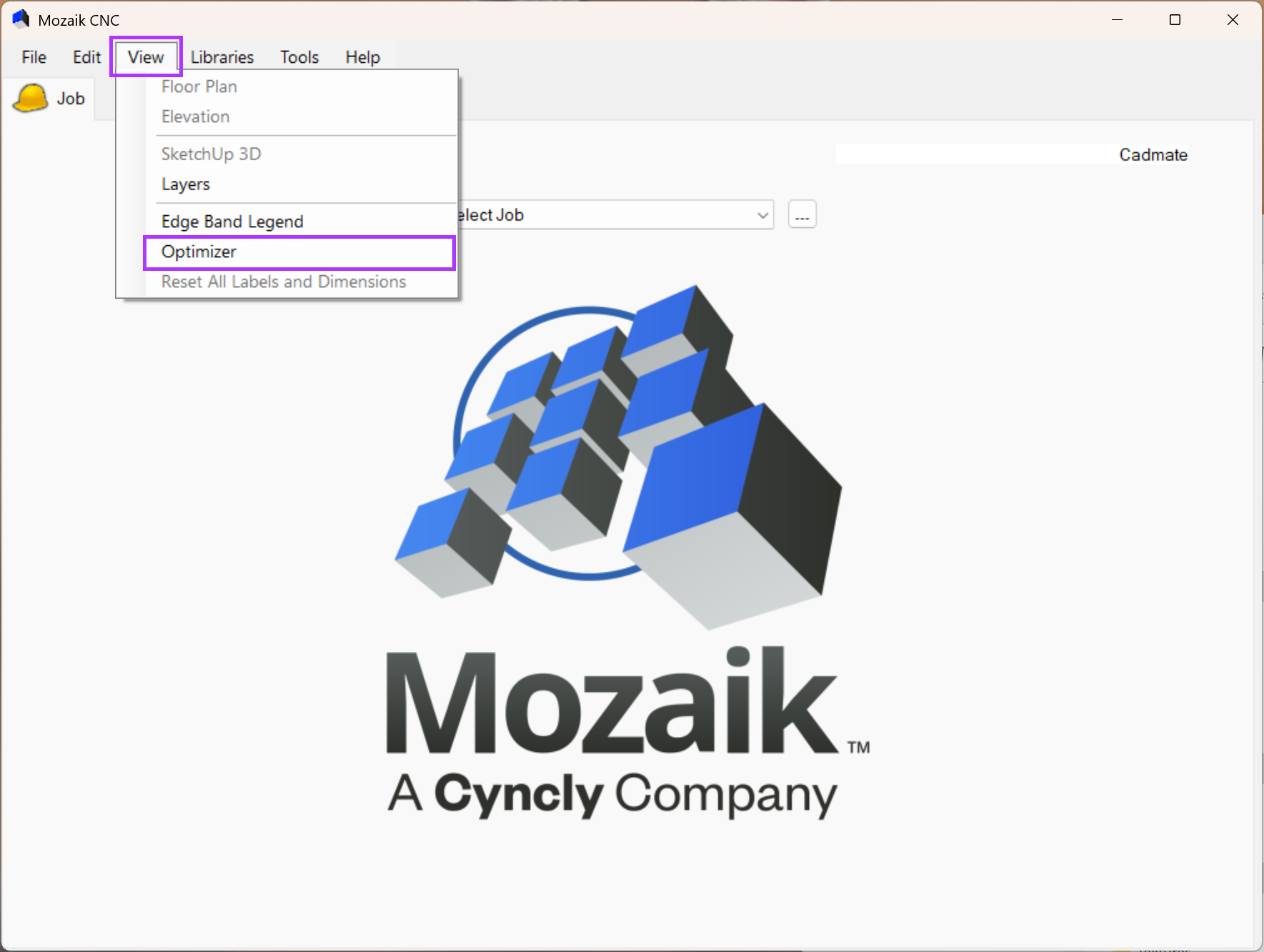

- You can open this from the Mozaik toolbar by clicking View > Optimizer
- You can open this from the Mozaik toolbar by clicking View > Optimizer

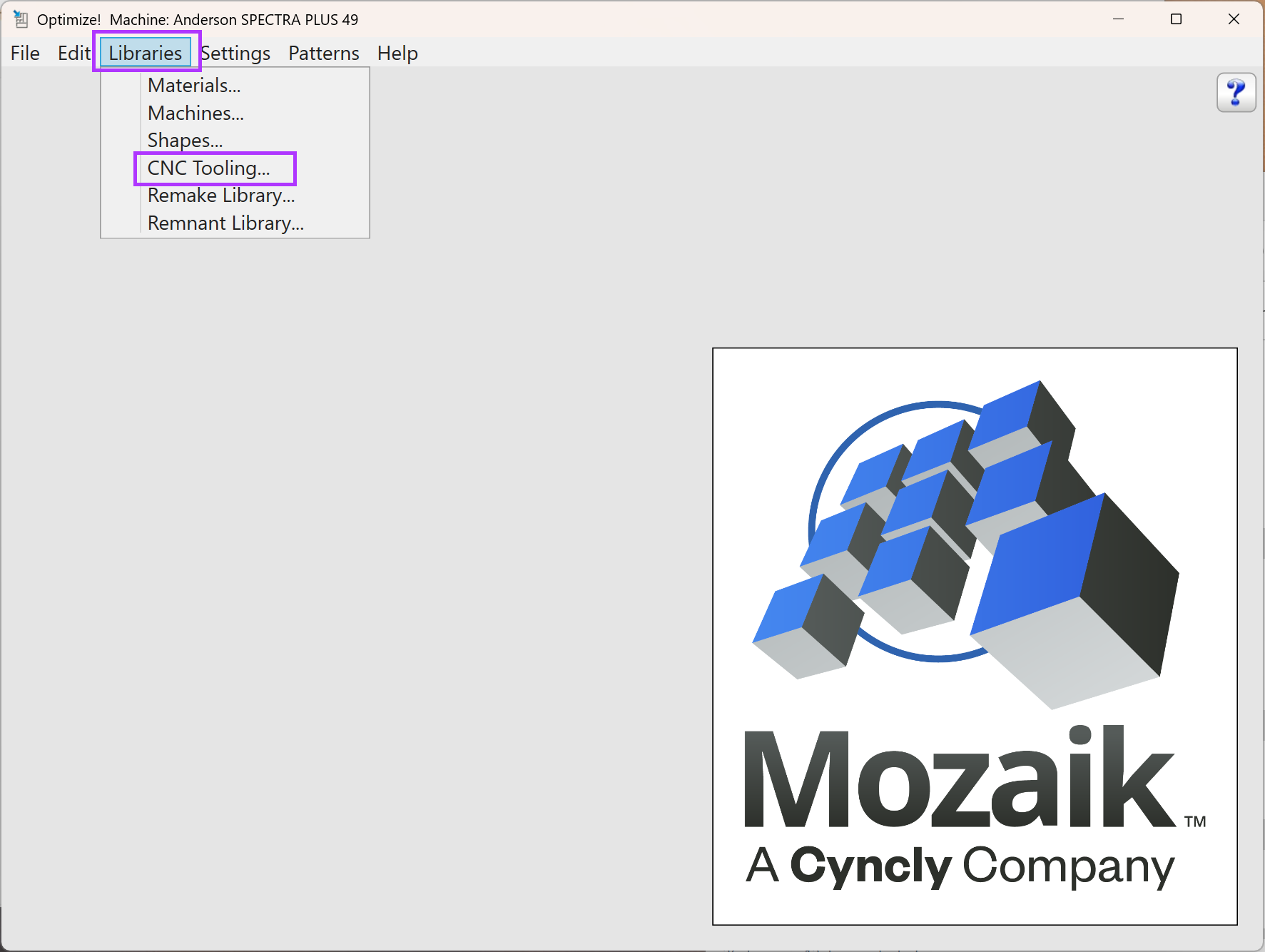

- Navigate to the Libraries menu and select CNC Tooling.
- From the list, click on the tool you would like to alter.

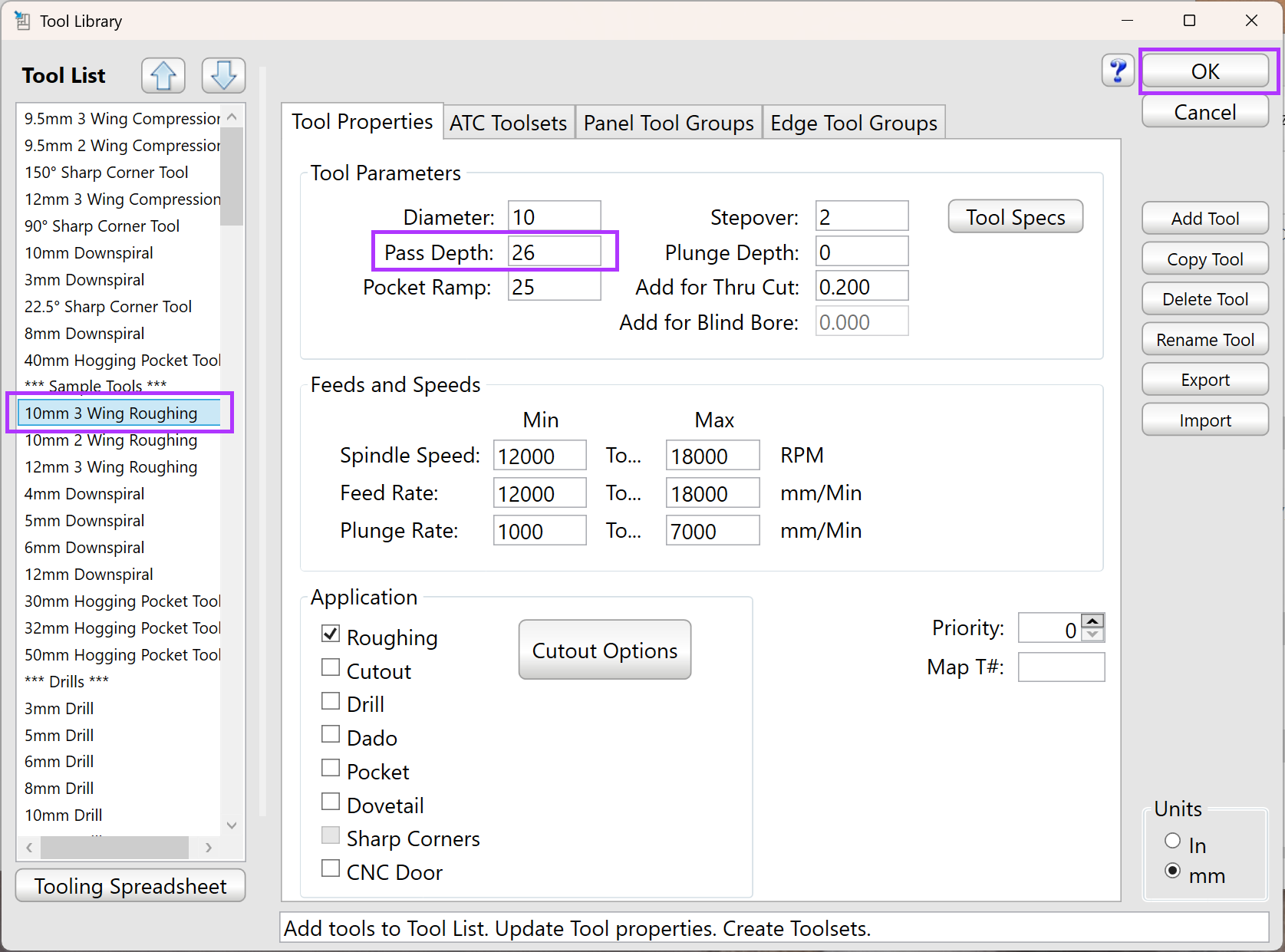

- Locate the Pass Depth field. Enter the maximum depth for a single cutting pass.
- For example, a value of 5mm will make the machine cut in 5mm increments until it reaches the final material depth.
- For example, a value of 5mm will make the machine cut in 5mm increments until it reaches the final material depth.
- Click OK to save your changes.
Note: You will need to re-generate your G-Code for these changes to take effect on an existing job.
